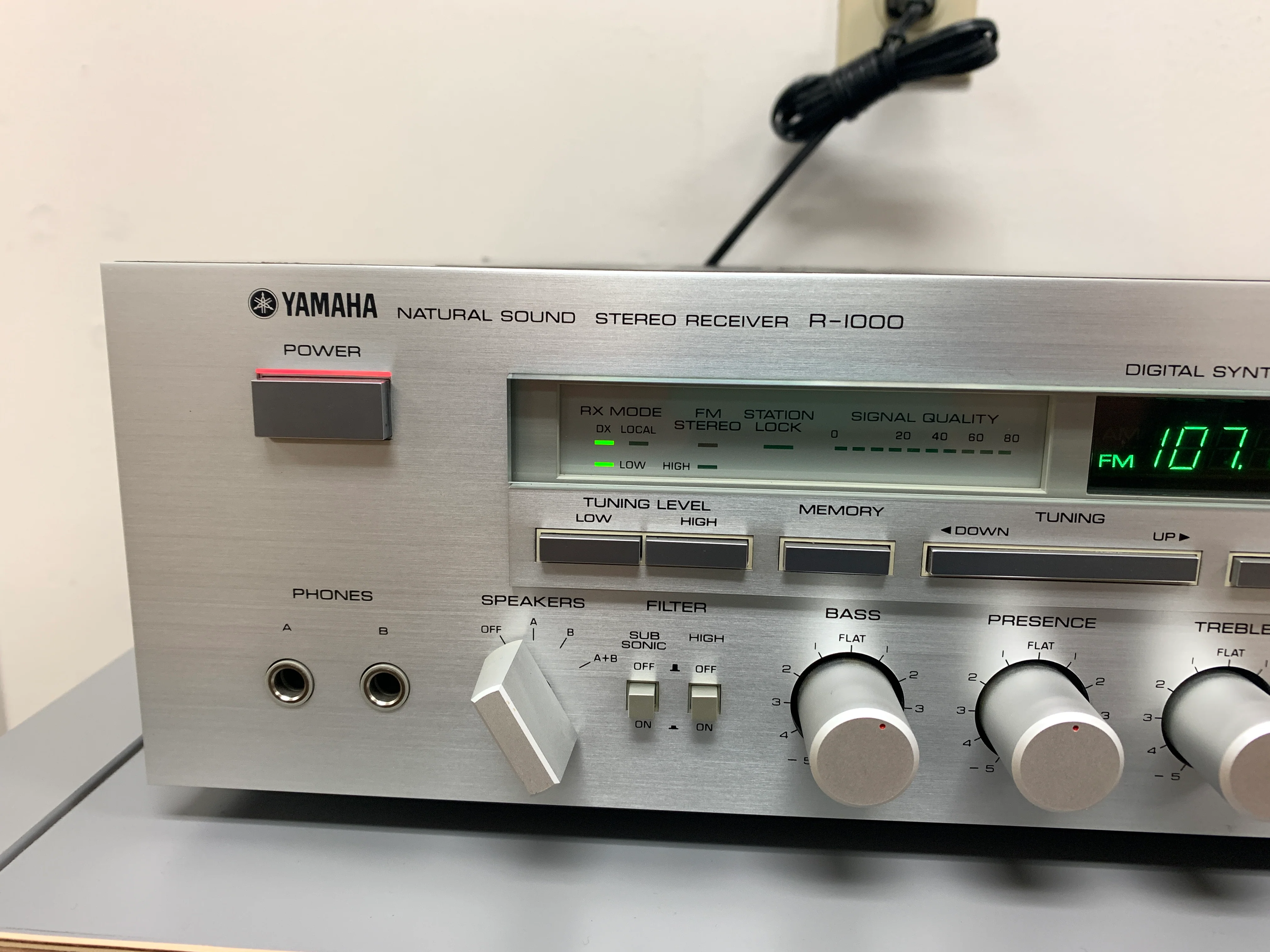

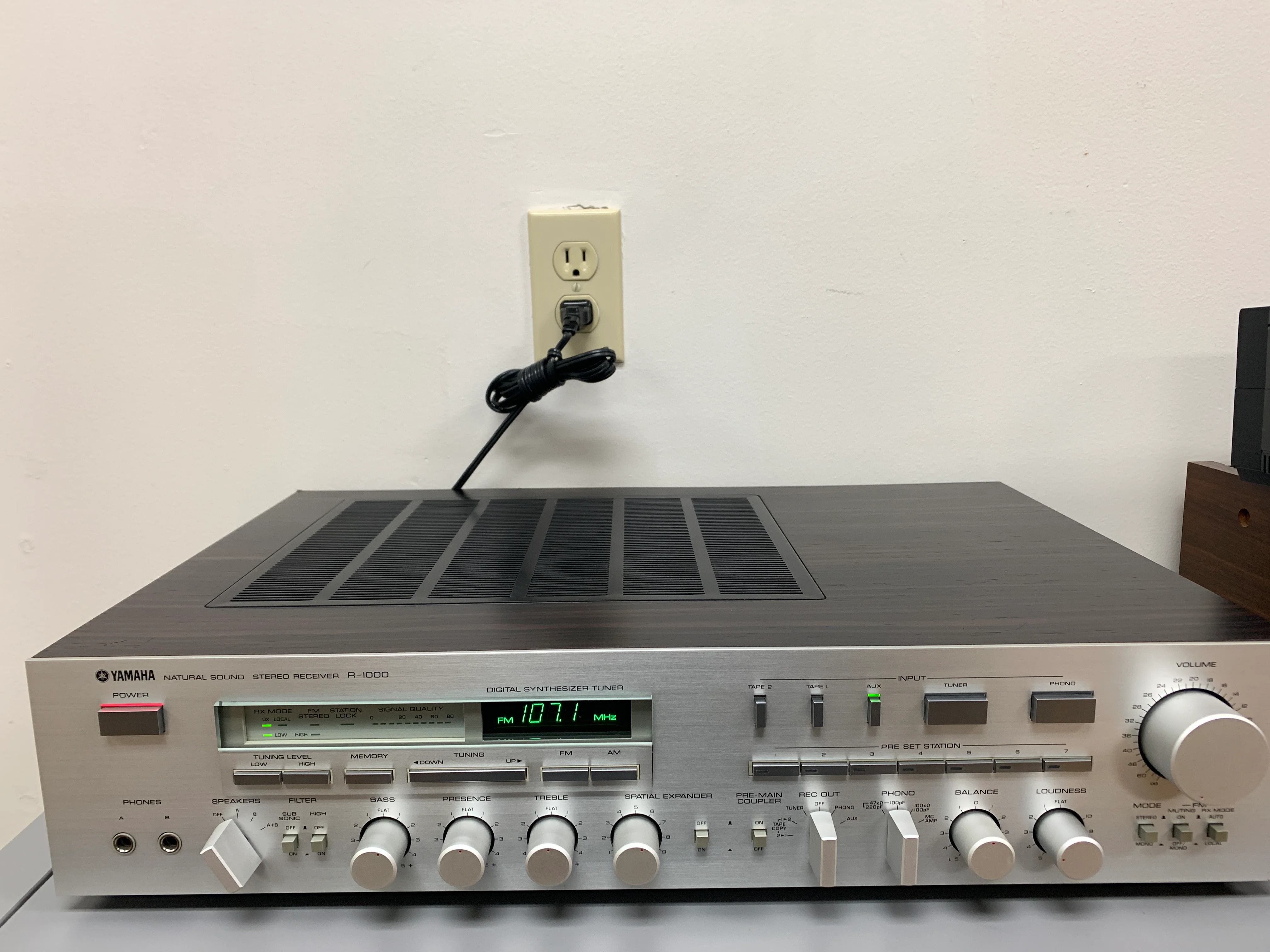

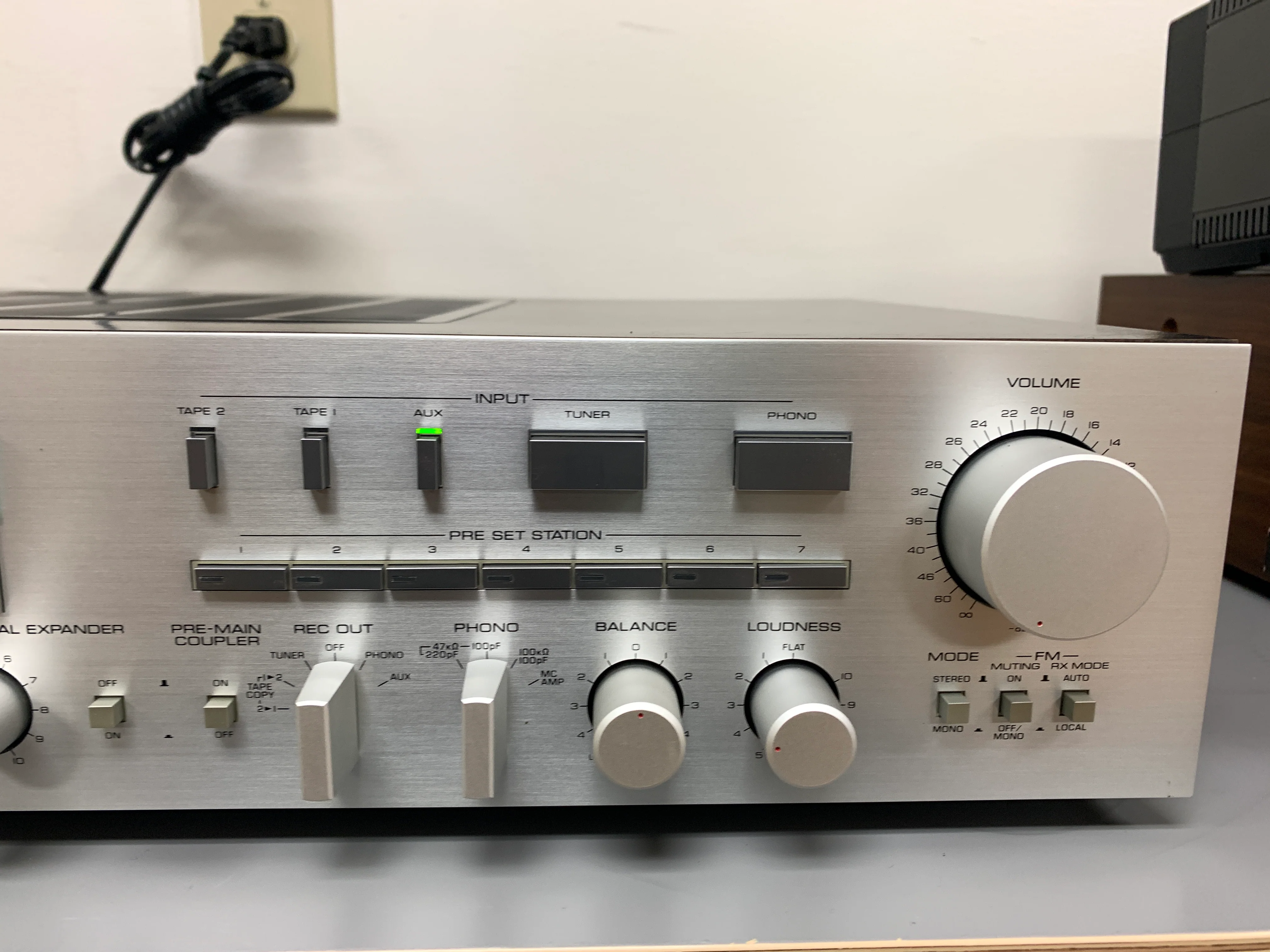

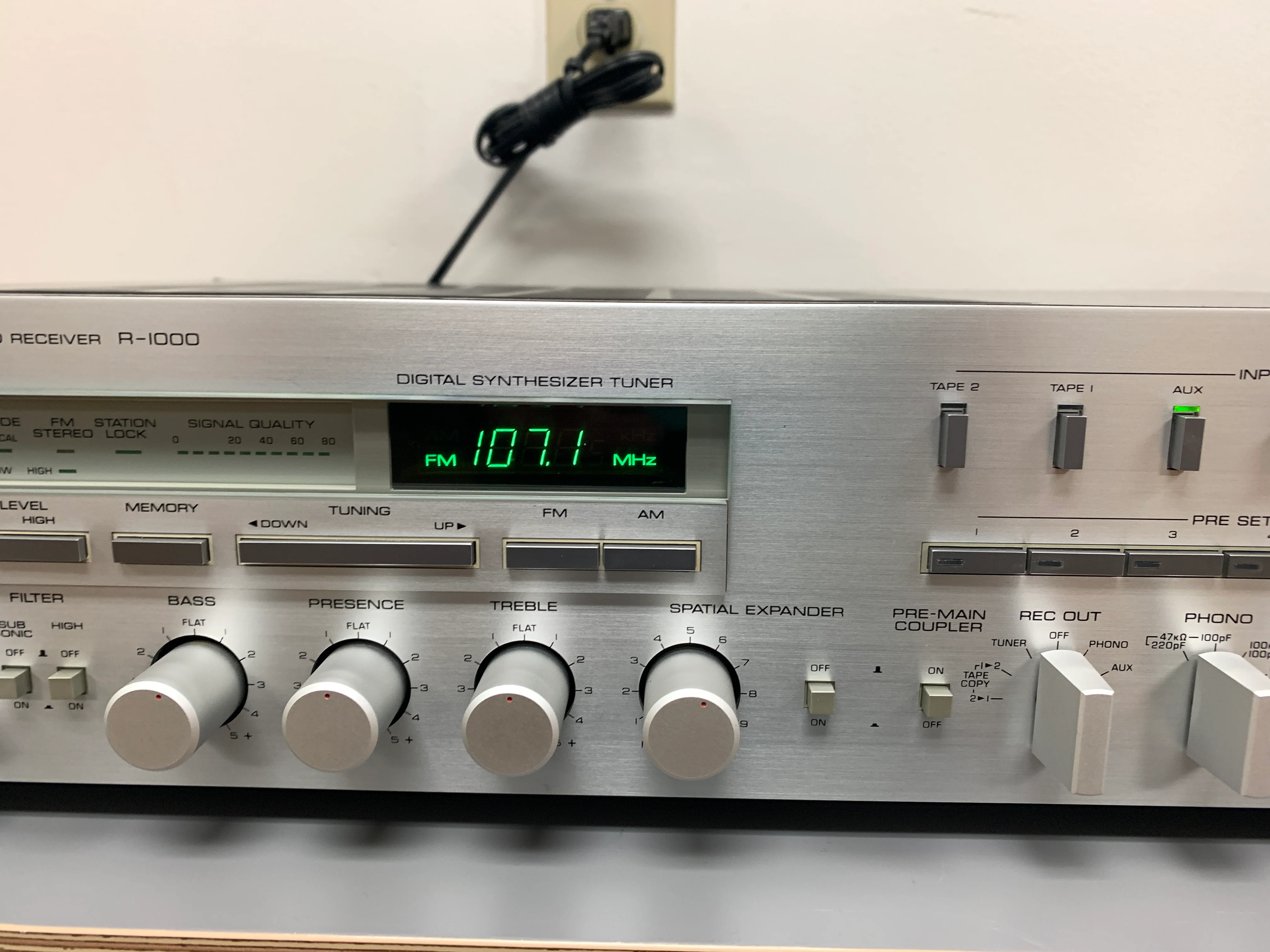

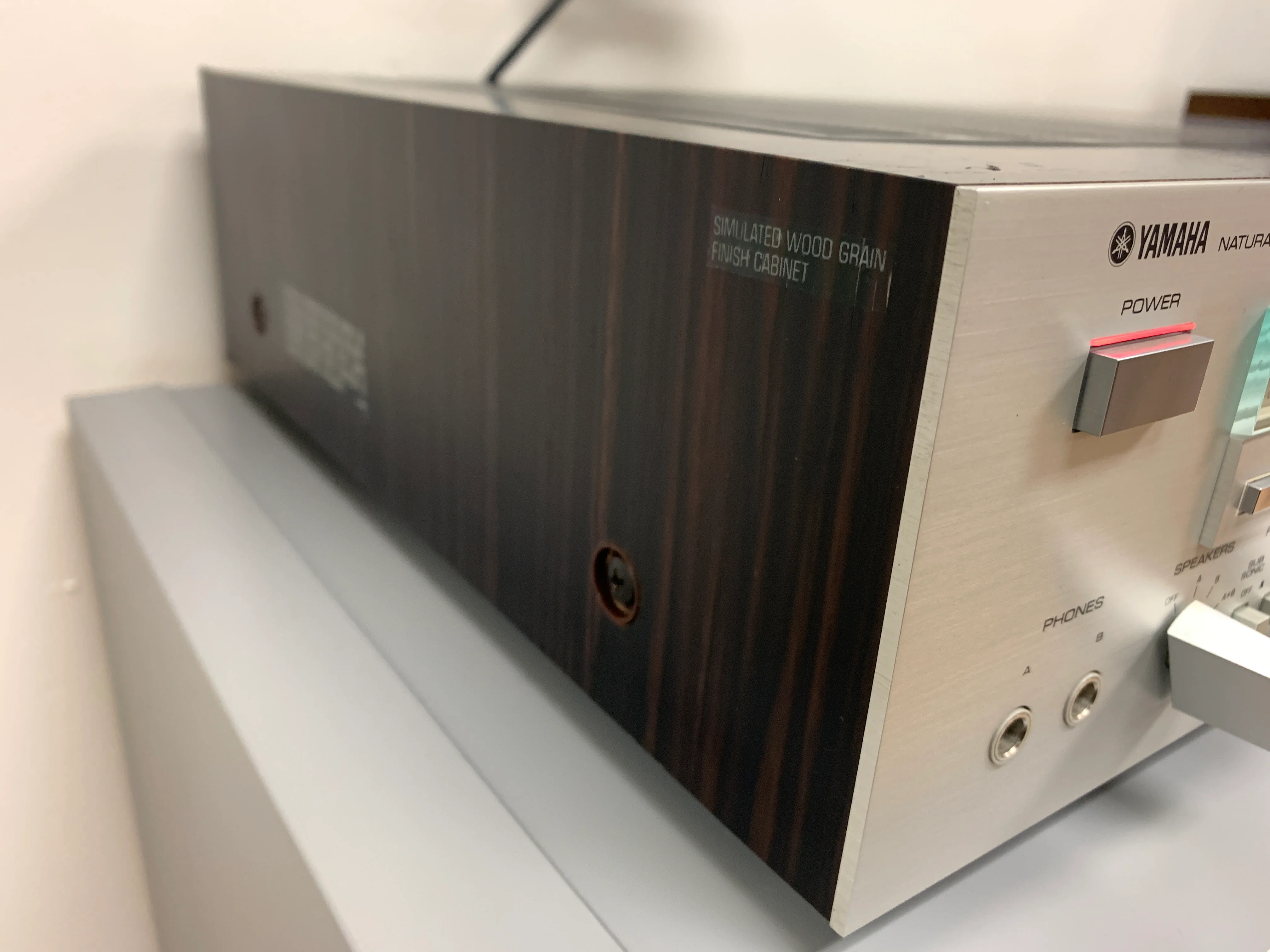

Yamaha R-1000

AM/FM Stereo Receiver (1981-82)

Specifications

Tuning range: FM, MW

Power output: 100 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.015%

Damping factor: 60

Input sensitivity: 0.1mV (MC), 2.5mV (MM), 120mV (line)

Signal to noise ratio: 77dB (MC), 80dB (MM), 83dB (line)

Channel separation: 64dB (MM), 64dB (line)

Output: 120mV (line), 1mV (DIN)

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 72 x transistors, 27 x IC, 7 x FET, 66 x diodes, 21 x LED

Dimensions: 540 x 122 x 385.6mm

Weight: 12.5kg

Year: 1981
