Sansui SE-9 Graphic Equalizer and Spectrum Analyzer * Technics RP-3800E Microphone
Stereo Graphic Equalizer (1981-83)
Description

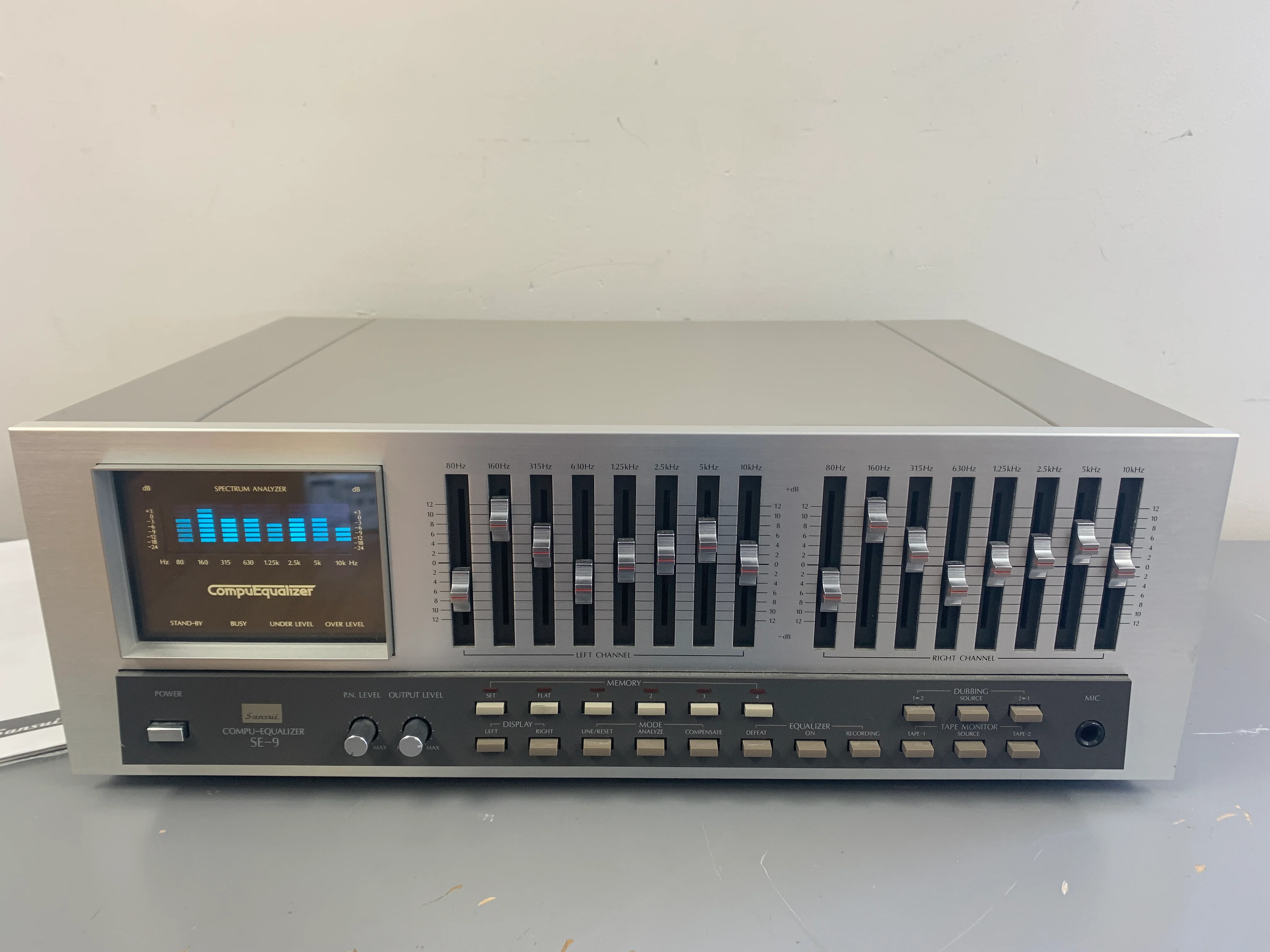

The Sansui SE-9 is a truly unique graphic equalizer that lets you attain flat response in any room, regardless of speaker response, furnishings or room size.
Here's how it works: the calibrated microphone (included) is placed in a favourite listening position.
Next, the SE-9's Analyse button is pushed. Automatically, a built-in pink noise generator is activated and the sound is picked up by the microphone.
Response is sent to the SE-9's computer, which automatically adjusts each control - one by one - until response is flat.
The Spectrum Analyser lets you actually watch the SE-9 flatten response.
Specifications
Output Level: 1V (5V max)
Gain: ± 0dB
Frequency response: 10Hz to 100kHz
Signal to Noise Ratio: 110dB
Total harmonic distortion: 0.008%
Control Range: ± 12dB
Frequency Bands: 80, 160, 315, 630, 1.25K, 2.5K, 5K, 10KHz
Dimensions: 430 x 148 x 311mm
Weight: 6.6kg
Finish: silver, black
Stereo Graphic Equalizer (1981-83)
Description
The Sansui SE-9 is a truly unique graphic equalizer that lets you attain flat response in any room, regardless of speaker response, furnishings or room size.
Here's how it works: the calibrated microphone (included) is placed in a favourite listening position.
Next, the SE-9's Analyse button is pushed. Automatically, a built-in pink noise generator is activated and the sound is picked up by the microphone.
Response is sent to the SE-9's computer, which automatically adjusts each control - one by one - until response is flat.
The Spectrum Analyser lets you actually watch the SE-9 flatten response.
Specifications
Output Level: 1V (5V max)
Gain: ± 0dB
Frequency response: 10Hz to 100kHz
Signal to Noise Ratio: 110dB
Total harmonic distortion: 0.008%
Control Range: ± 12dB
Frequency Bands: 80, 160, 315, 630, 1.25K, 2.5K, 5K, 10KHz
Dimensions: 430 x 148 x 311mm
Weight: 6.6kg
Finish: silver, black
Original: $550.00
-65%$550.00
$192.50Description
Stereo Graphic Equalizer (1981-83)
Description
The Sansui SE-9 is a truly unique graphic equalizer that lets you attain flat response in any room, regardless of speaker response, furnishings or room size.
Here's how it works: the calibrated microphone (included) is placed in a favourite listening position.
Next, the SE-9's Analyse button is pushed. Automatically, a built-in pink noise generator is activated and the sound is picked up by the microphone.
Response is sent to the SE-9's computer, which automatically adjusts each control - one by one - until response is flat.
The Spectrum Analyser lets you actually watch the SE-9 flatten response.
Specifications
Output Level: 1V (5V max)
Gain: ± 0dB
Frequency response: 10Hz to 100kHz
Signal to Noise Ratio: 110dB
Total harmonic distortion: 0.008%
Control Range: ± 12dB
Frequency Bands: 80, 160, 315, 630, 1.25K, 2.5K, 5K, 10KHz
Dimensions: 430 x 148 x 311mm
Weight: 6.6kg
Finish: silver, black
