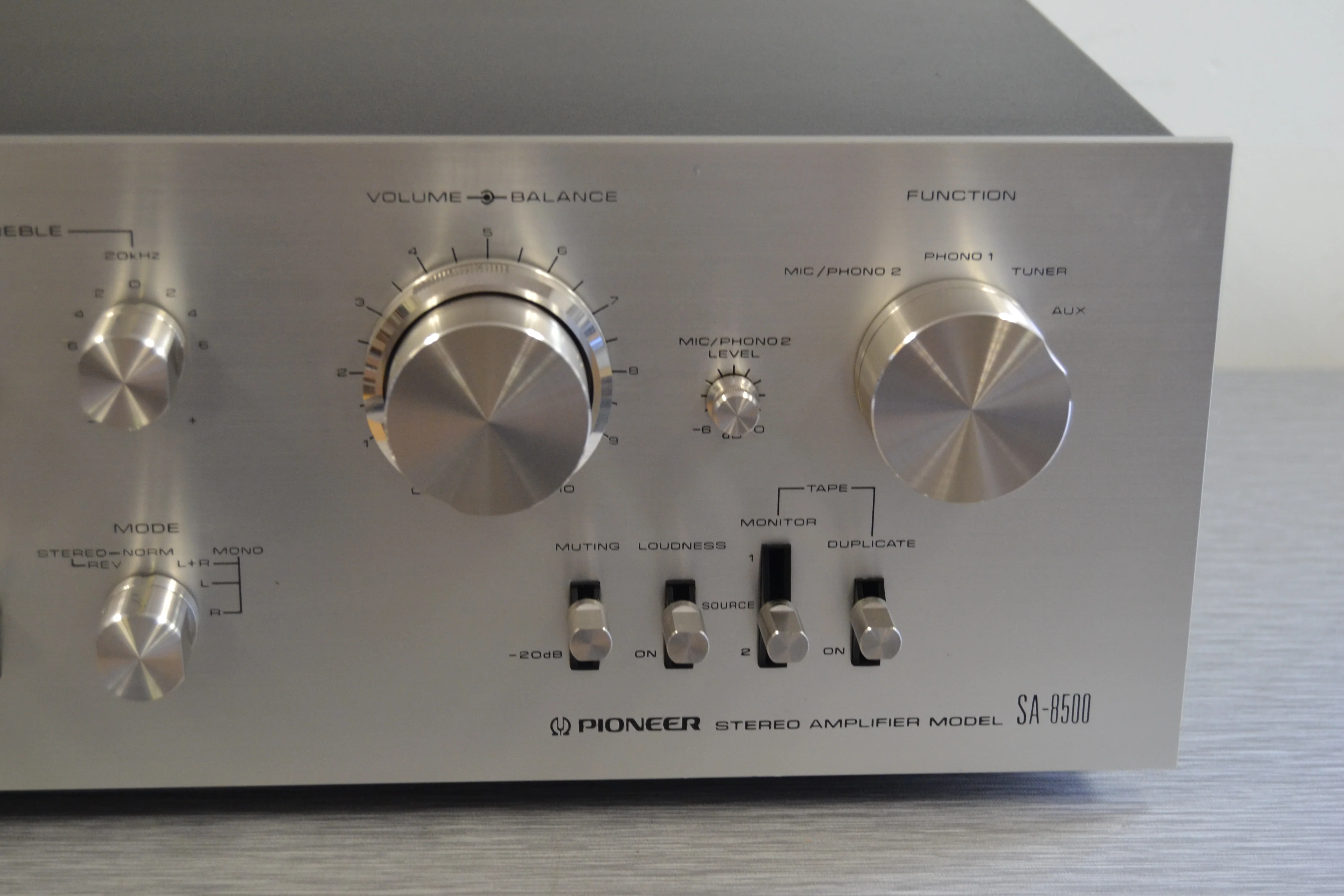

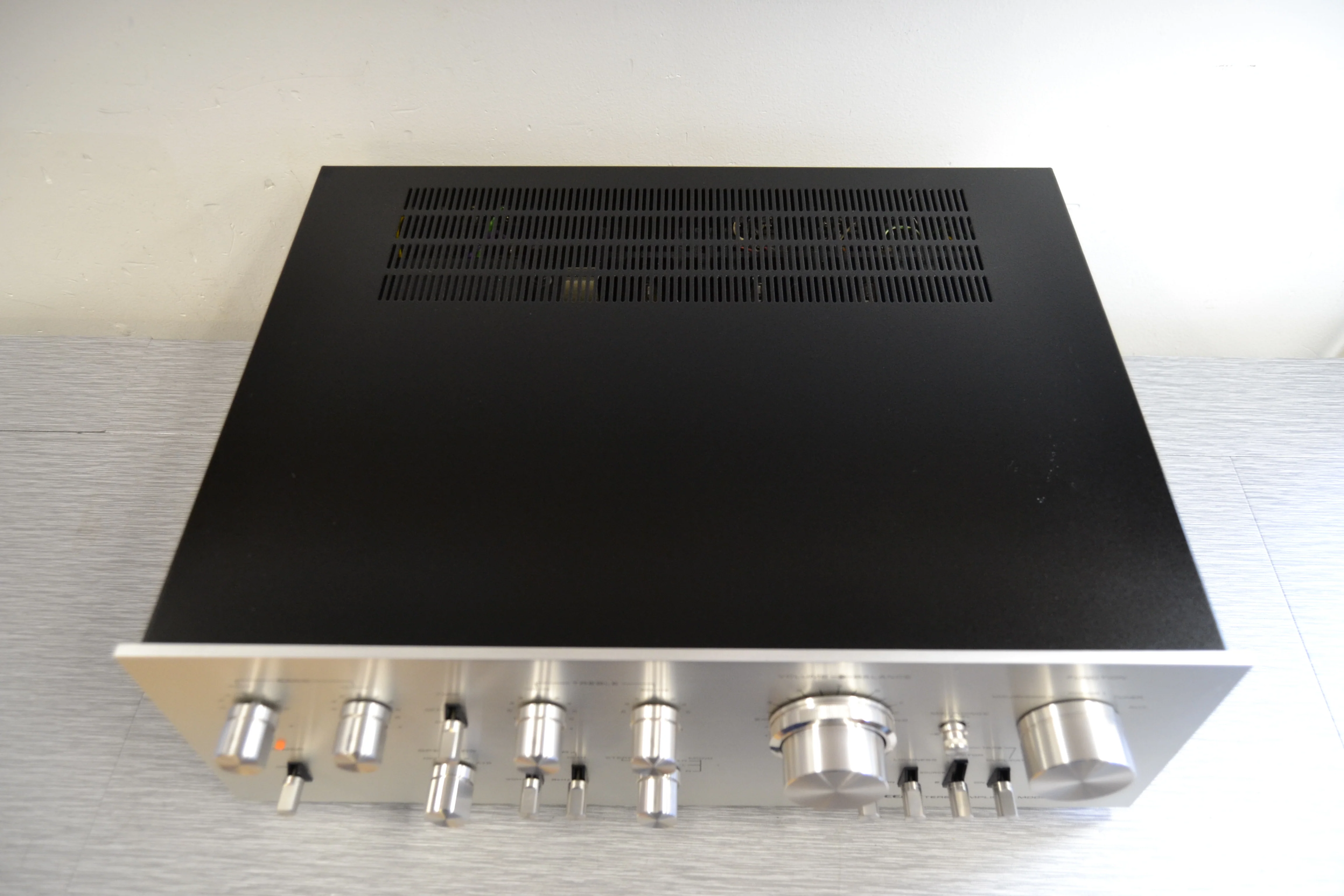

Pioneer SA-8500 Integrated Amplifier
Pioneer SA-8500
Stereo Integrated Amplifier (1975-79)
Description
The Pioneer SA-8500 is a 2-channel integrated stereo amplifier featuring defeatable, twin bass and treble controls, balance control, microphone input with level control, loudness switch, muting switch, low and high filter circuits and connections for two speaker systems.
Specifications
-
Power output: 60 watts per channel into 8Ω (stereo)
Frequency response: 7Hz to 40kHz
Total harmonic distortion: 0.1%
Damping factor: 30
Input sensitivity: 7.5mV (mic), 2.5mV (MM), 150mV (line)
Signal to noise ratio: 65dB (mic), 70dB (MM), 90dB (line)
Output: 150mV (line), 30mV (DIN), 1V (Pre out)
Semiconductors: 45 x transistors, 27 x diodes
Dimensions: 420 x 150 x 345mm
Weight: 13kg
Accessories: connecting cord
Year: 1976
