Pioneer PL-512 Direct Drive Turntable * NEW Audio Technica Cartridge

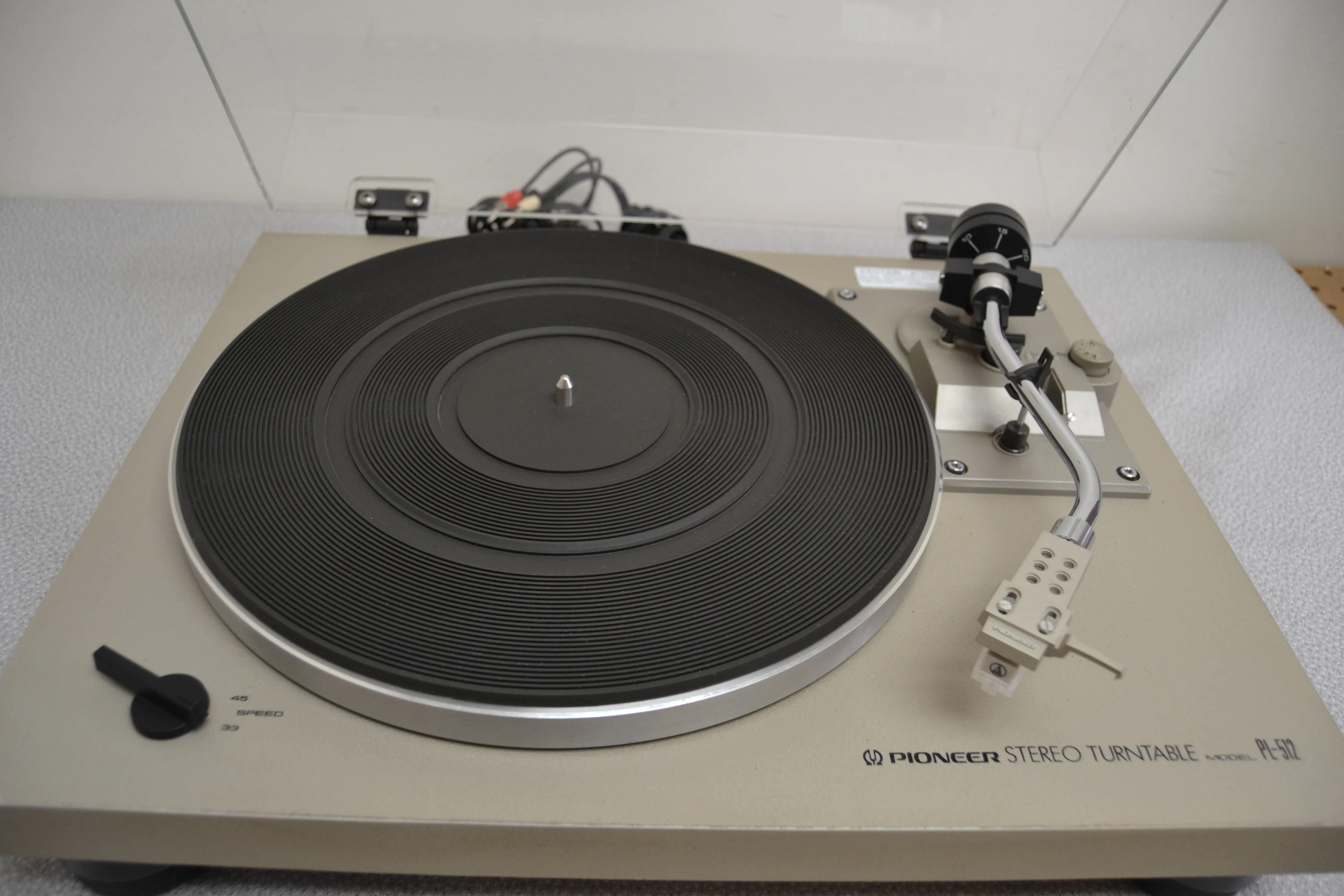

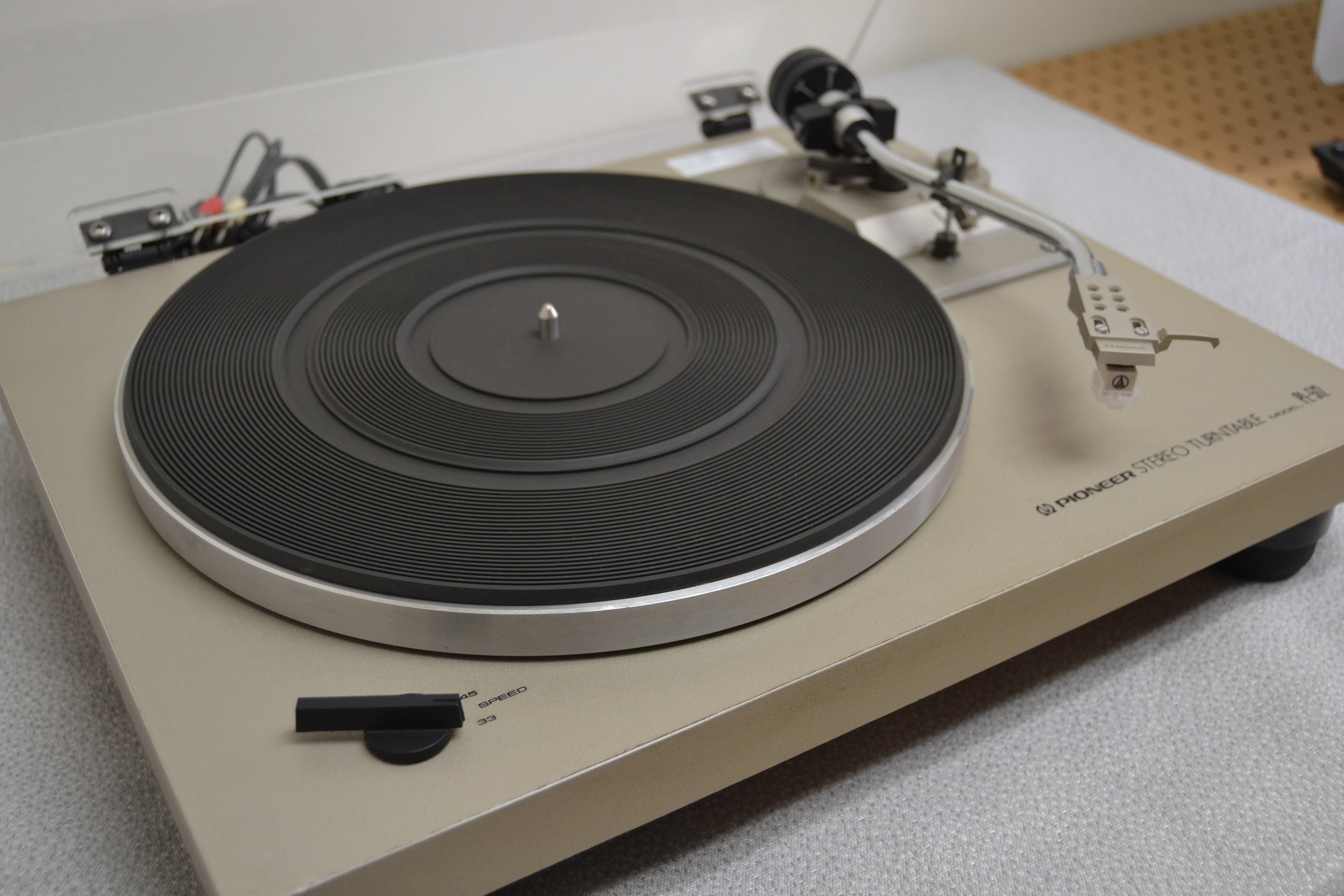

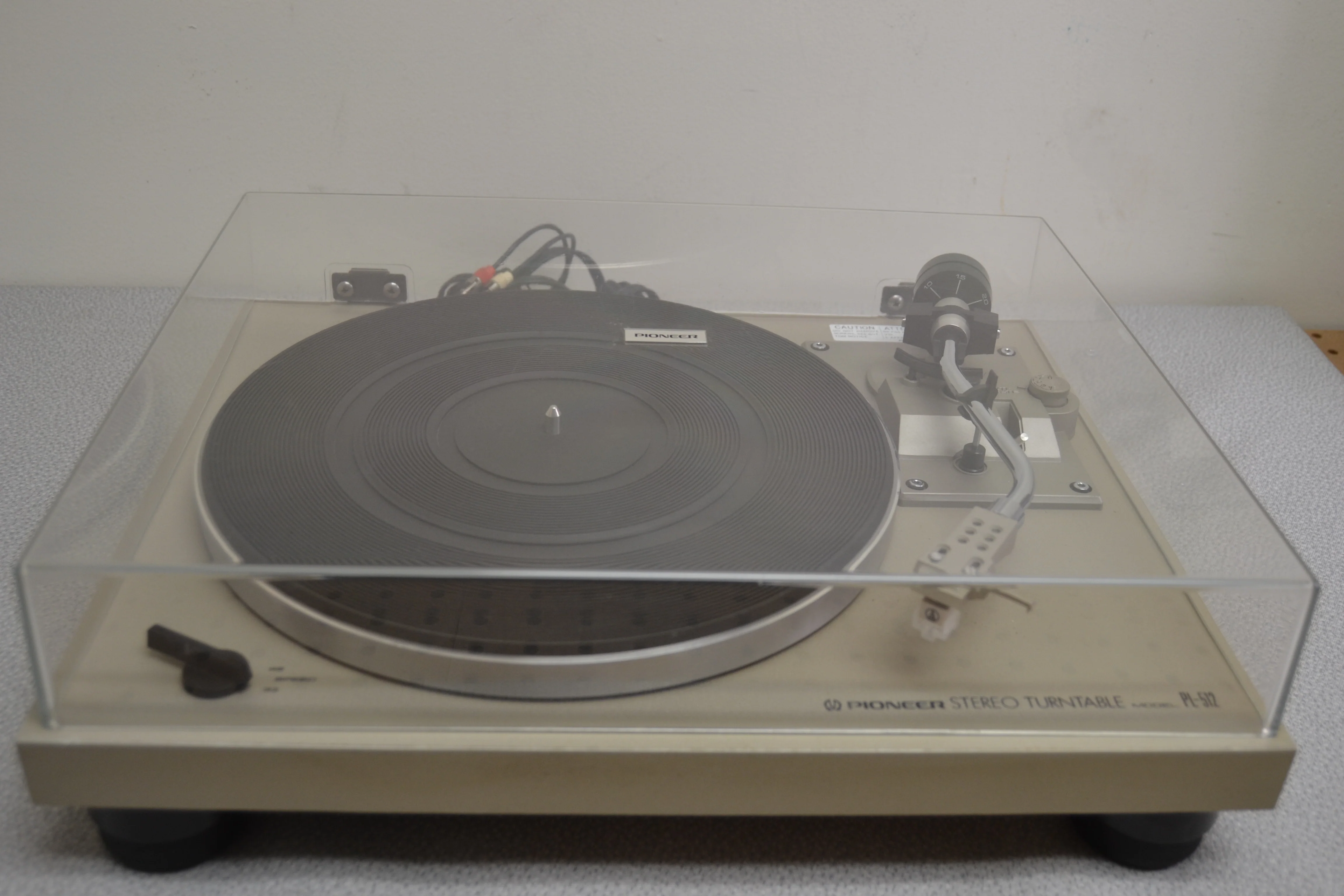

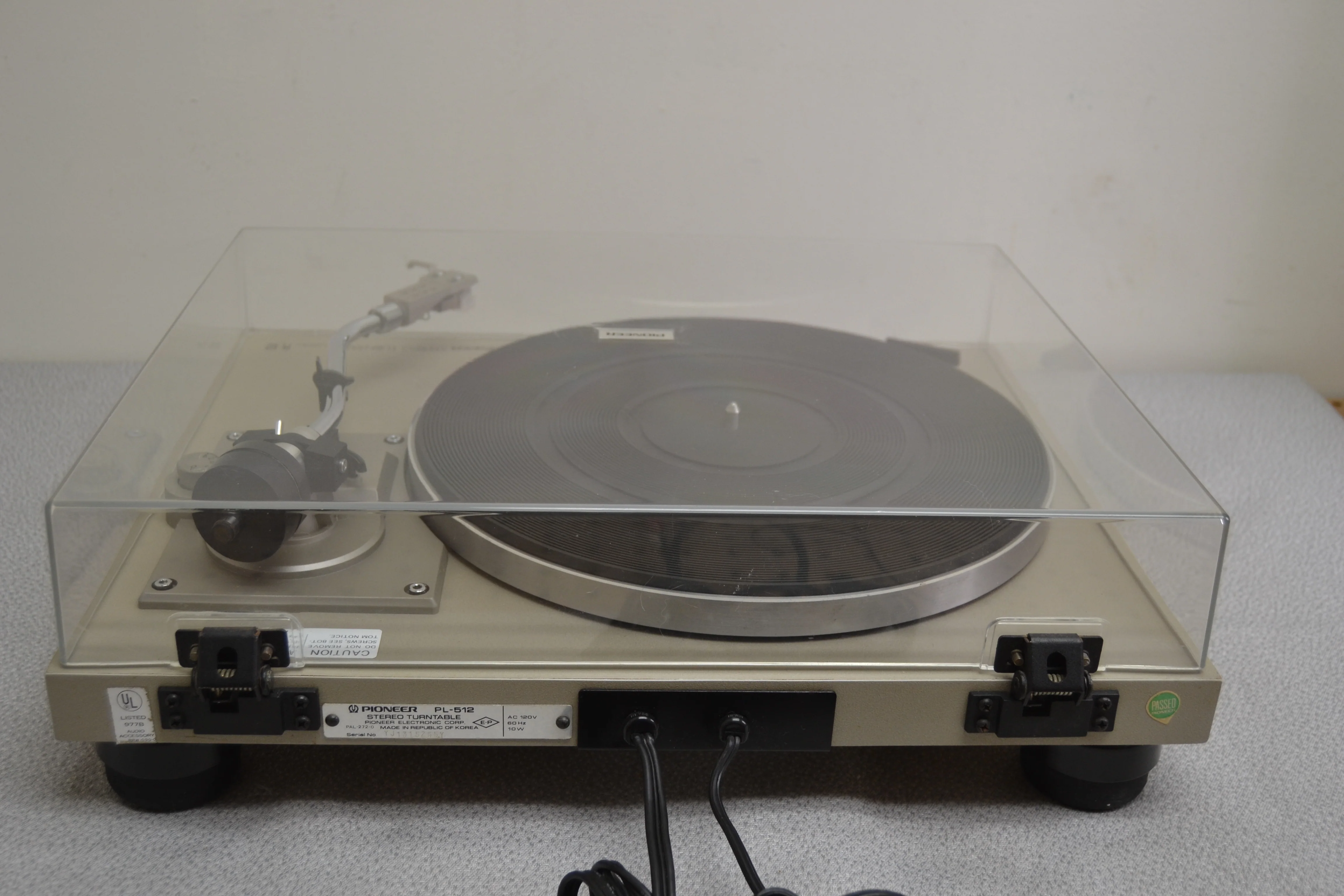

Pioneer PL-512
2-Speed Belt-Drive Turntable (1978-1980)
Description
The Pioneer PL-512 is a 2-speed, belt-driven turntable with static balance type s-shaped tonearm.
The PL-512XD has a walnut grain vinyl finish and comes fitted with the PC-135 phono cartridge; the PL-512X is identical but has a black vinyl finish and no cartridge.
Specifications
Type: manual turntable
Drive method: belt drive
Motor: 4-pole synchronous
Speeds: 33 and 45rpm
Wow and flutter: 0.055% WRMS
Signal to noise ratio: 65dB
Platter: 300mm aluminium die-cast

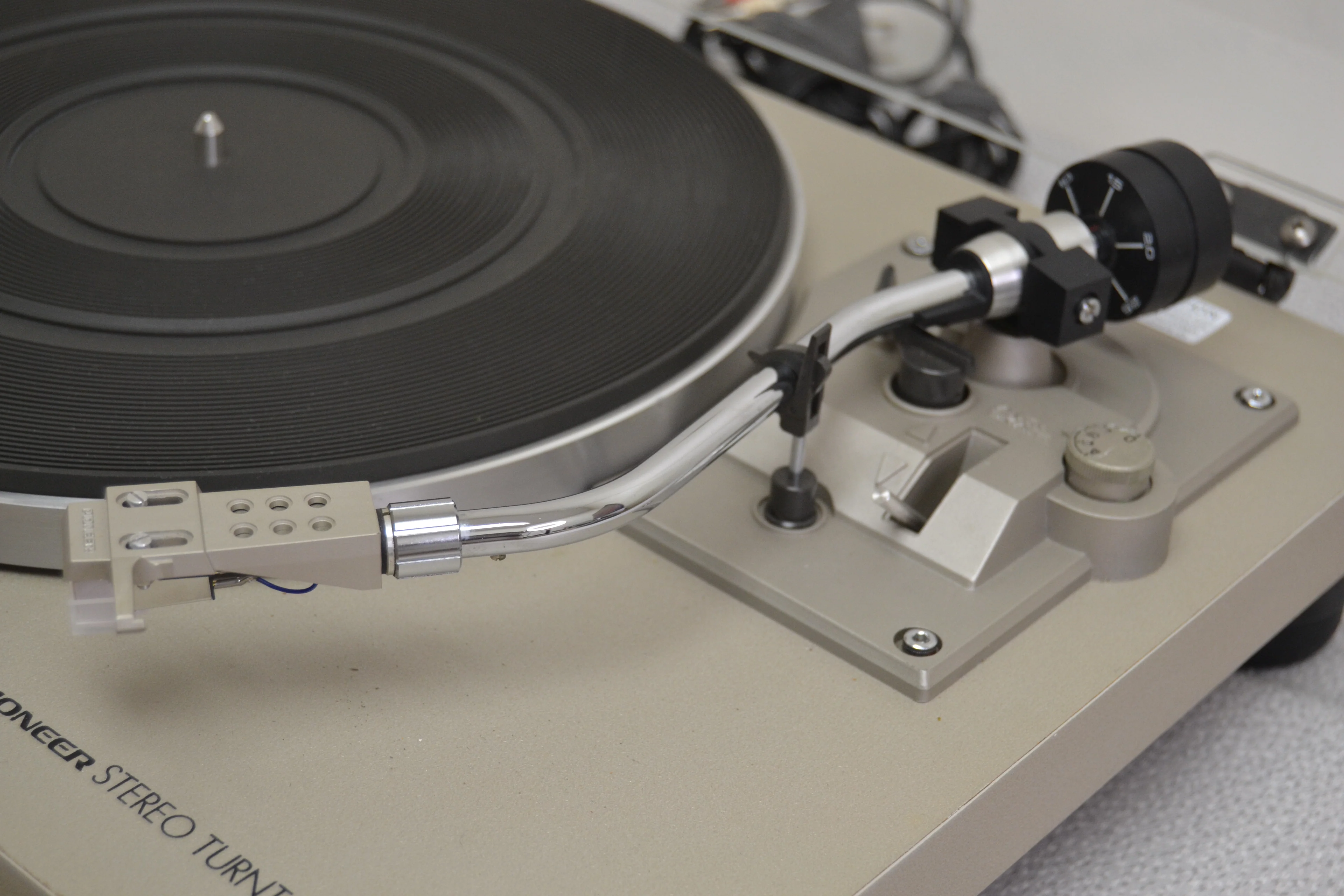

Tonearm: static balance type, pipe arm (s-shaped)
Effective length: 221mm
Overhang: 15.5mm
Usable cartridge weight: 4 to 10g
Dimensions: 440 x 365 x 132mm
Weight: 6.5kg
