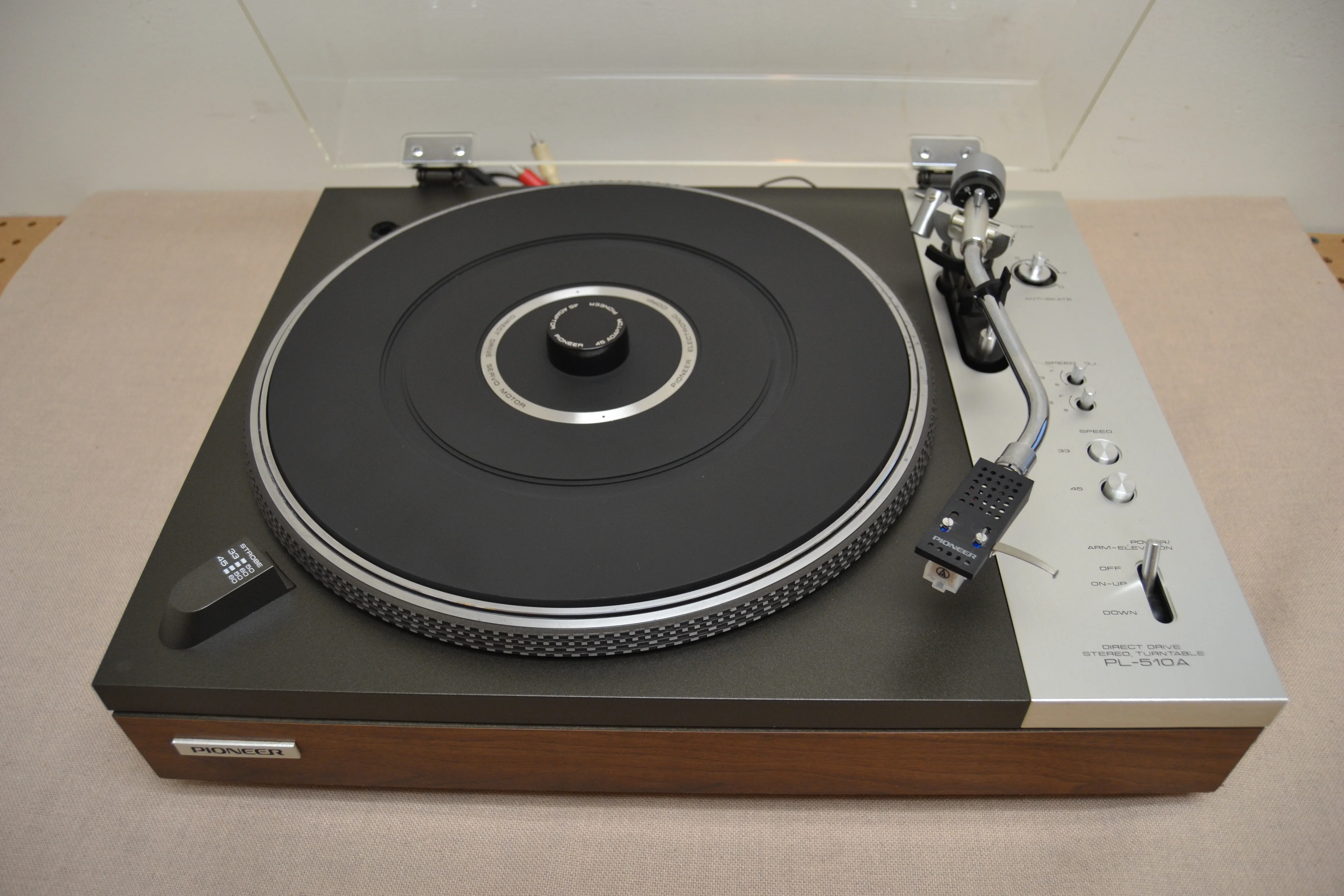

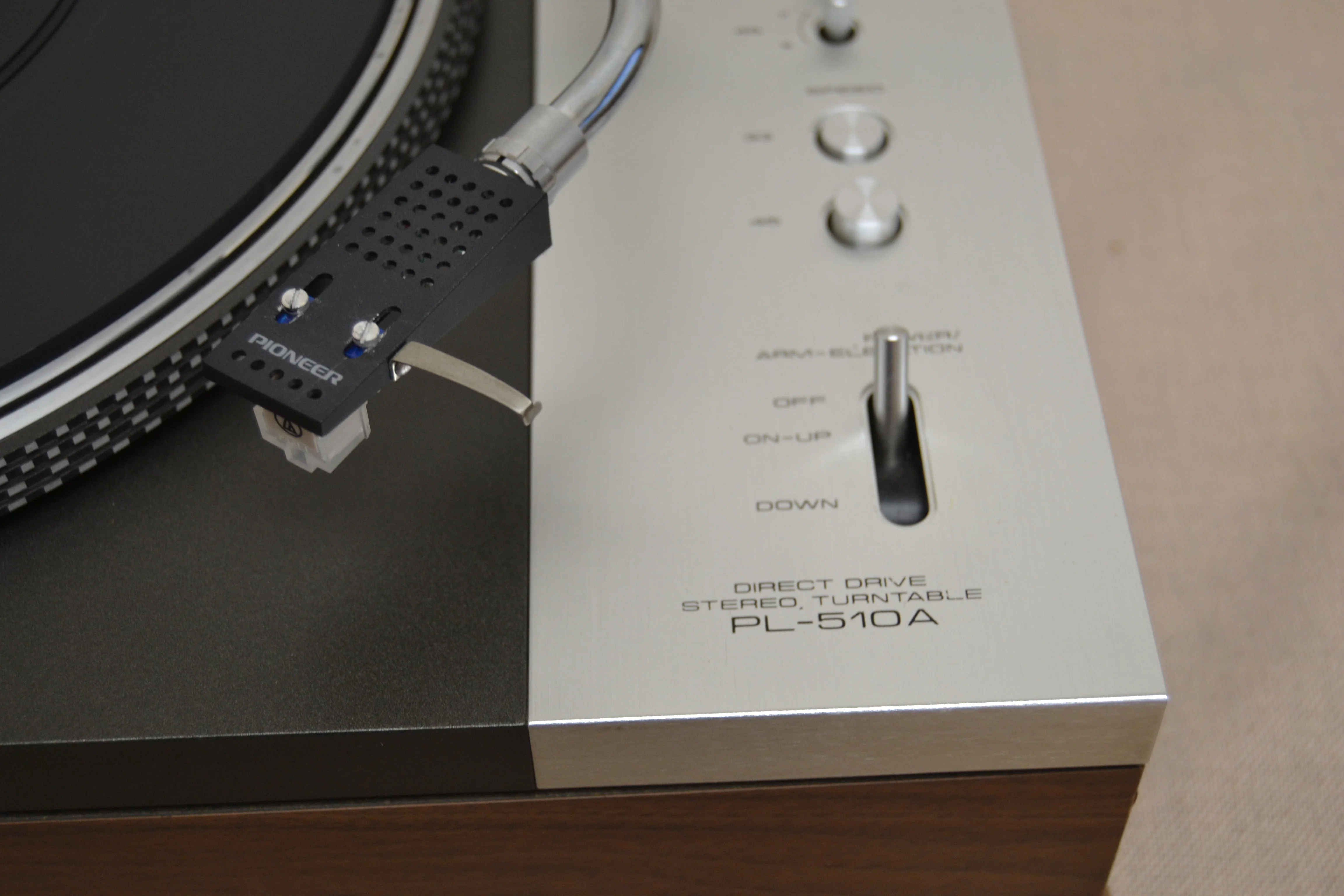

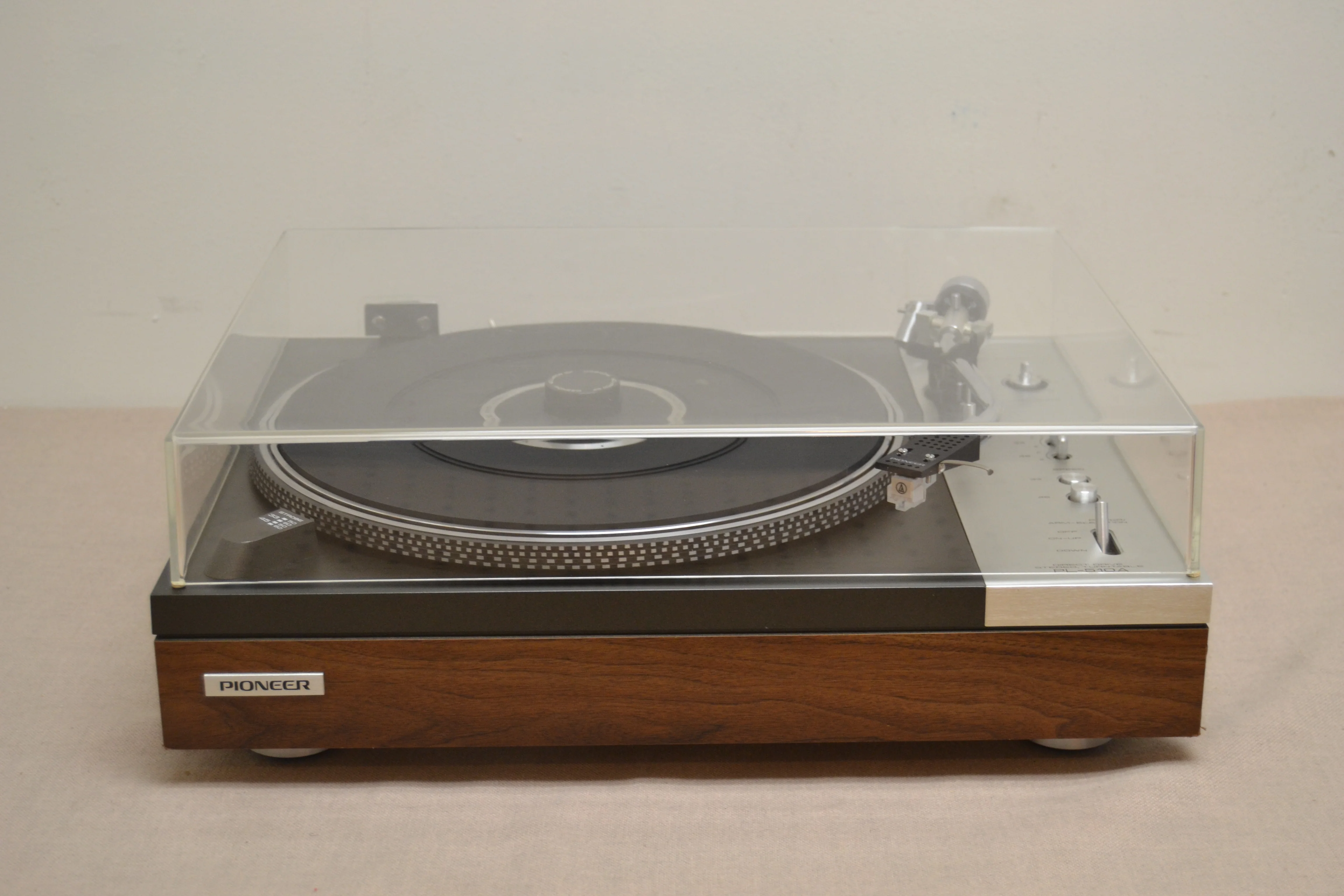

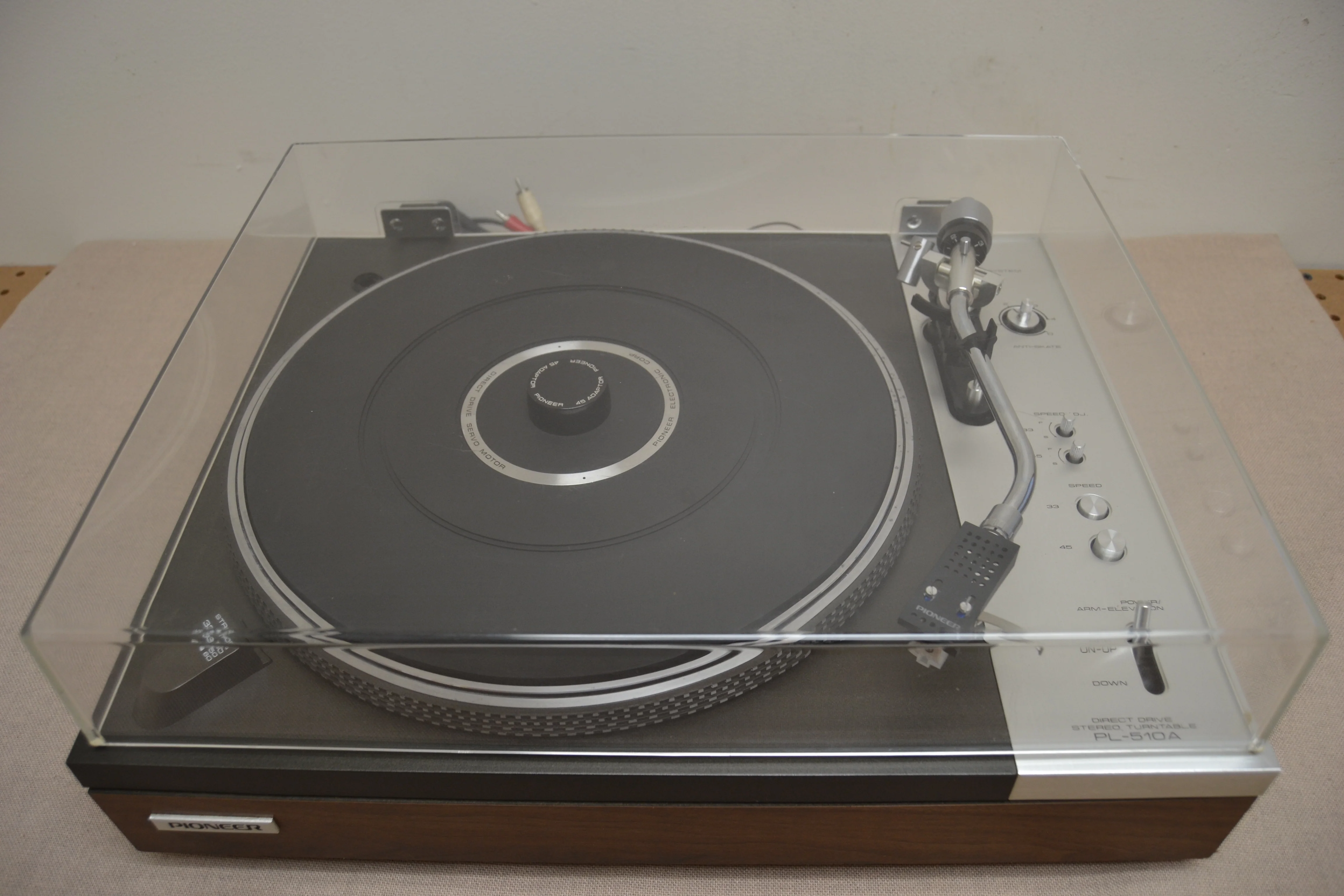

Pioneer PL-510A

2-Speed Direct-Drive Turntable (1976-1978)

Description

The Pioneer PL-510A is a high precision direct drive turntable designed for incorporation into a component type stereo music system.

Features of the unit include:

DC servo motor direct drive system

Automatic control circuit and precise speed adjustment

High sensitivity statically balanced tonearm

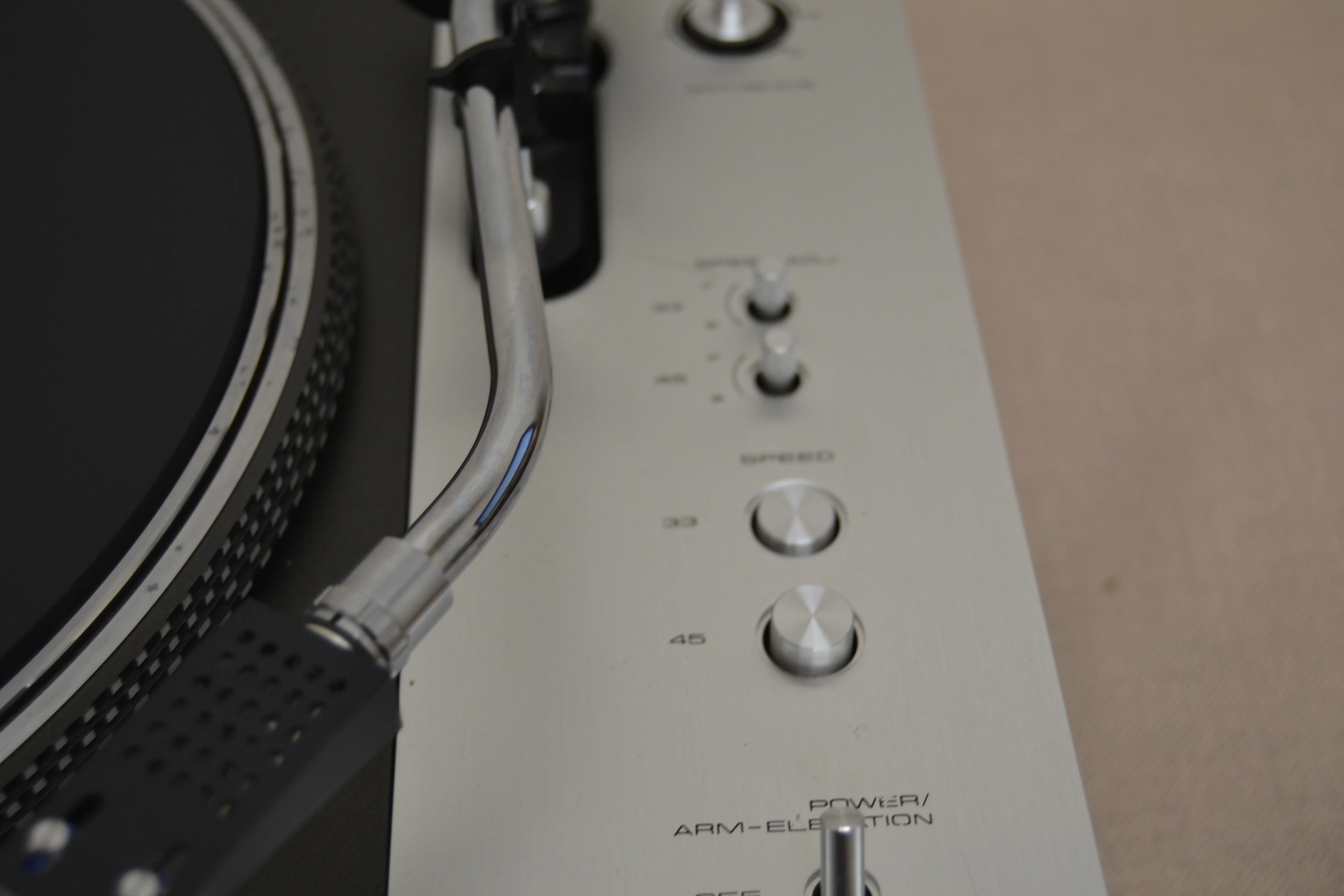

Straight line control panel layout

Pitch control

Stroboscope

Specifications

Type: direct drive

Motor: DC servo motor

Platter: 321mm aluminium alloy

Speeds: 33 and 45rpm

Wow and flutter: 0.03%

Rumble: 68dB

Tonearm: static-balanced type, s-shaped pipe arm

Effective length: 221mm

Overhang: 15.5mm

Cartridge weight range: 4 to 10g

Dimensions: 440 x 362 x 159mm

Weight: 8kg
