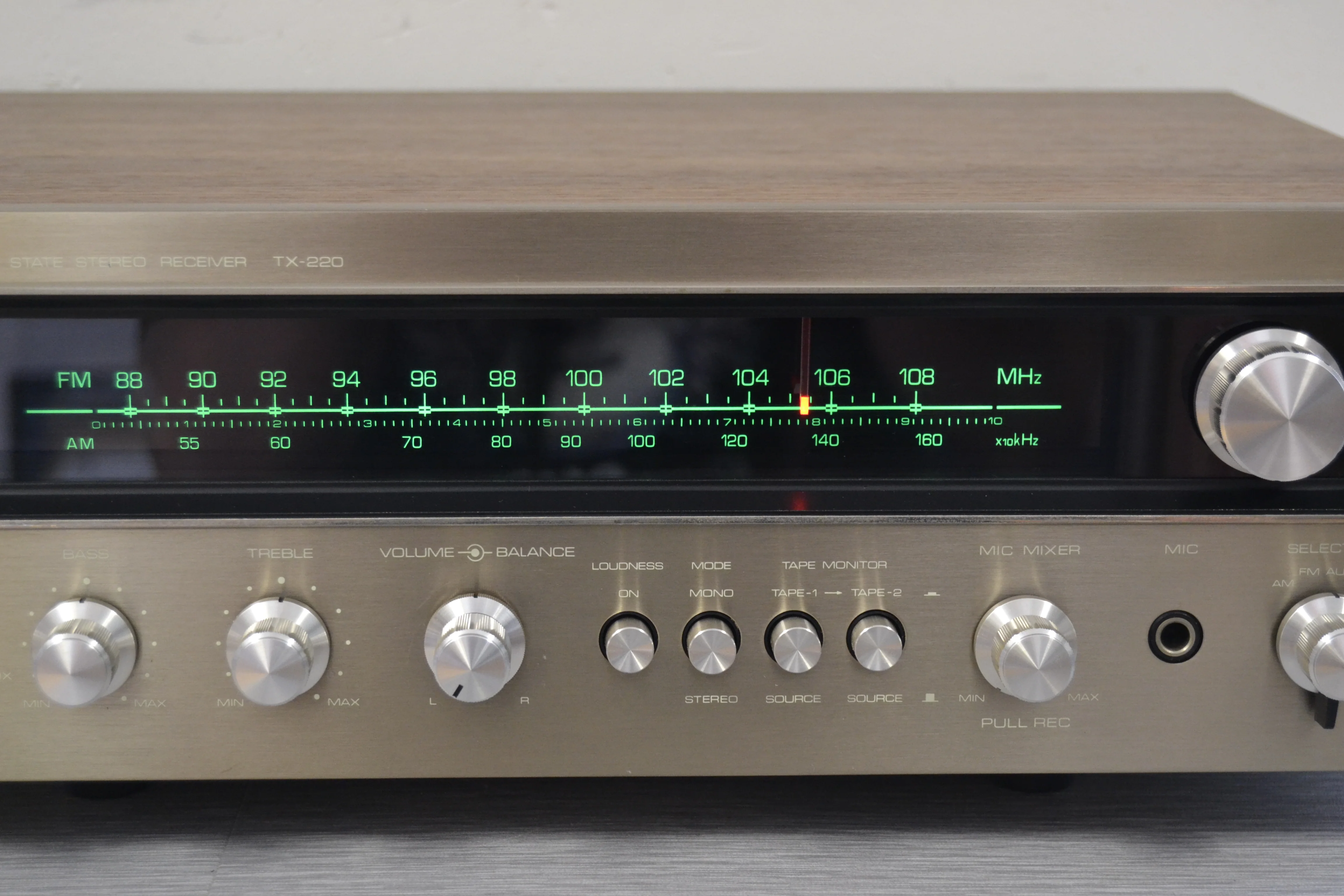

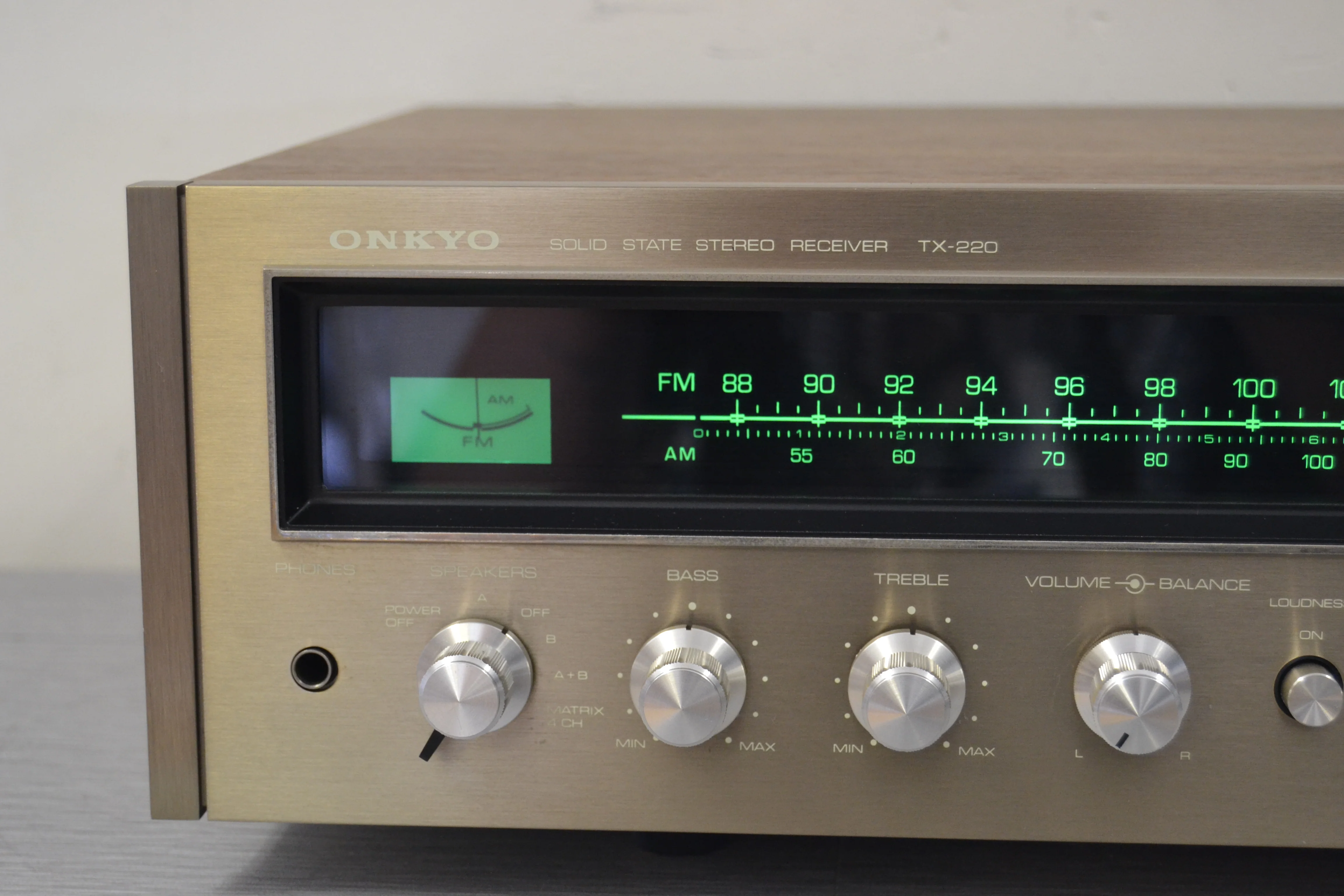

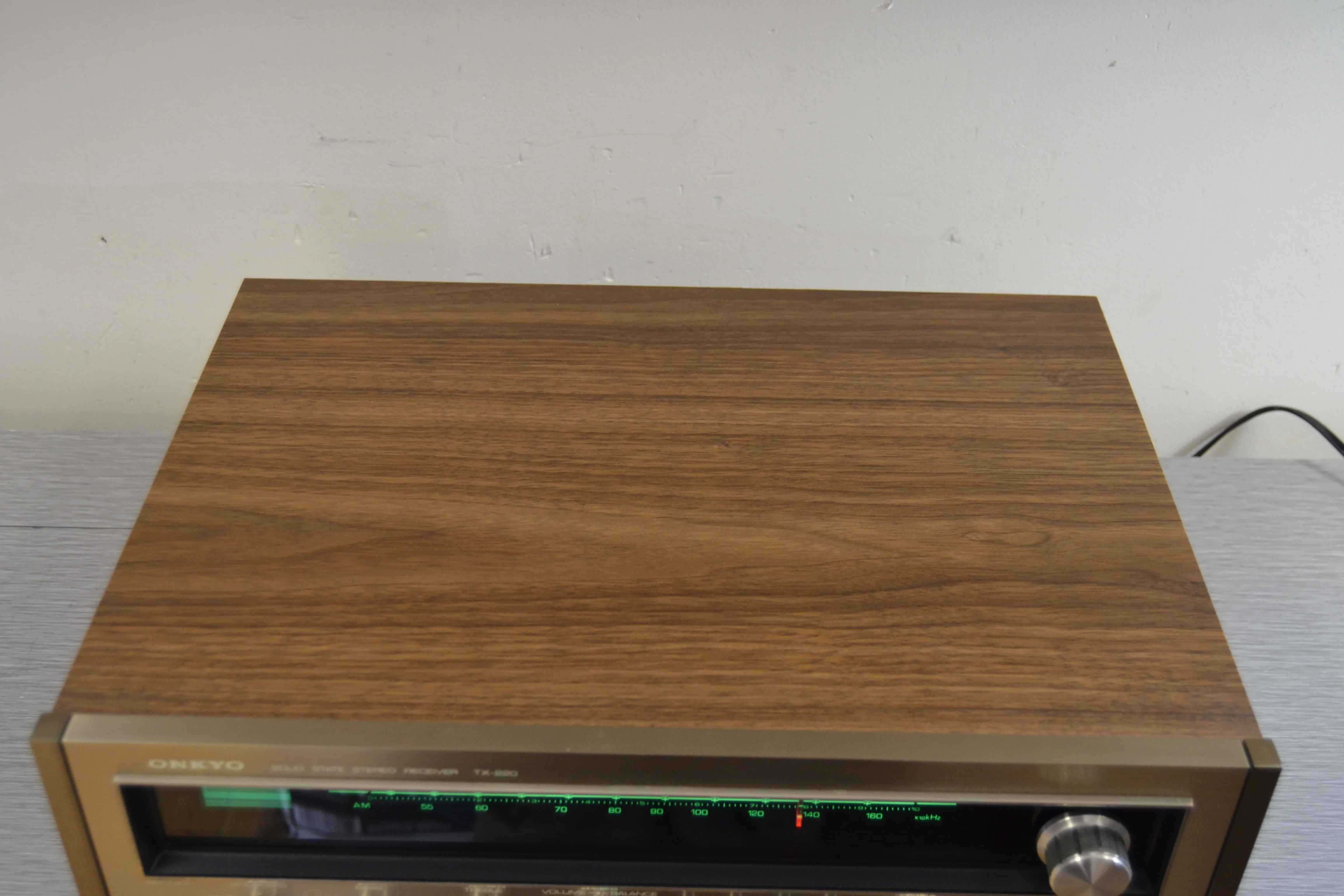

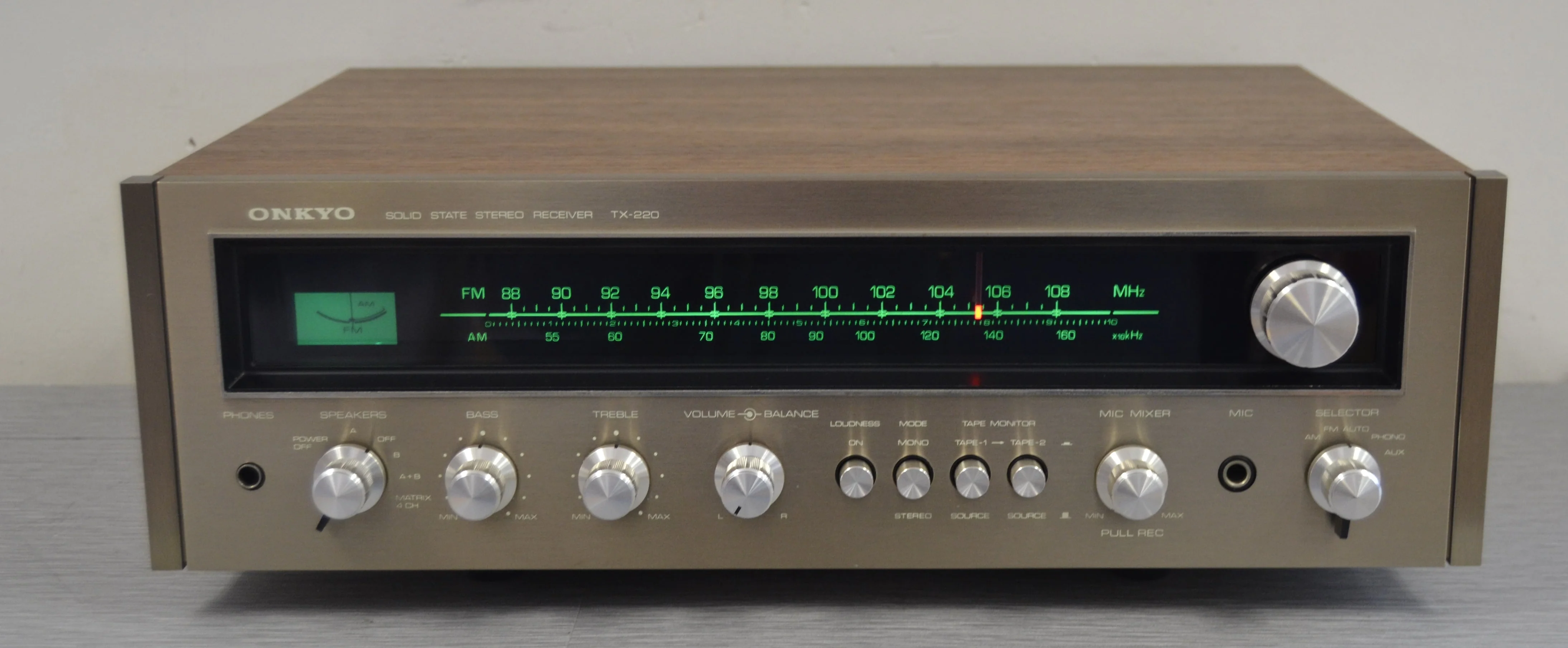

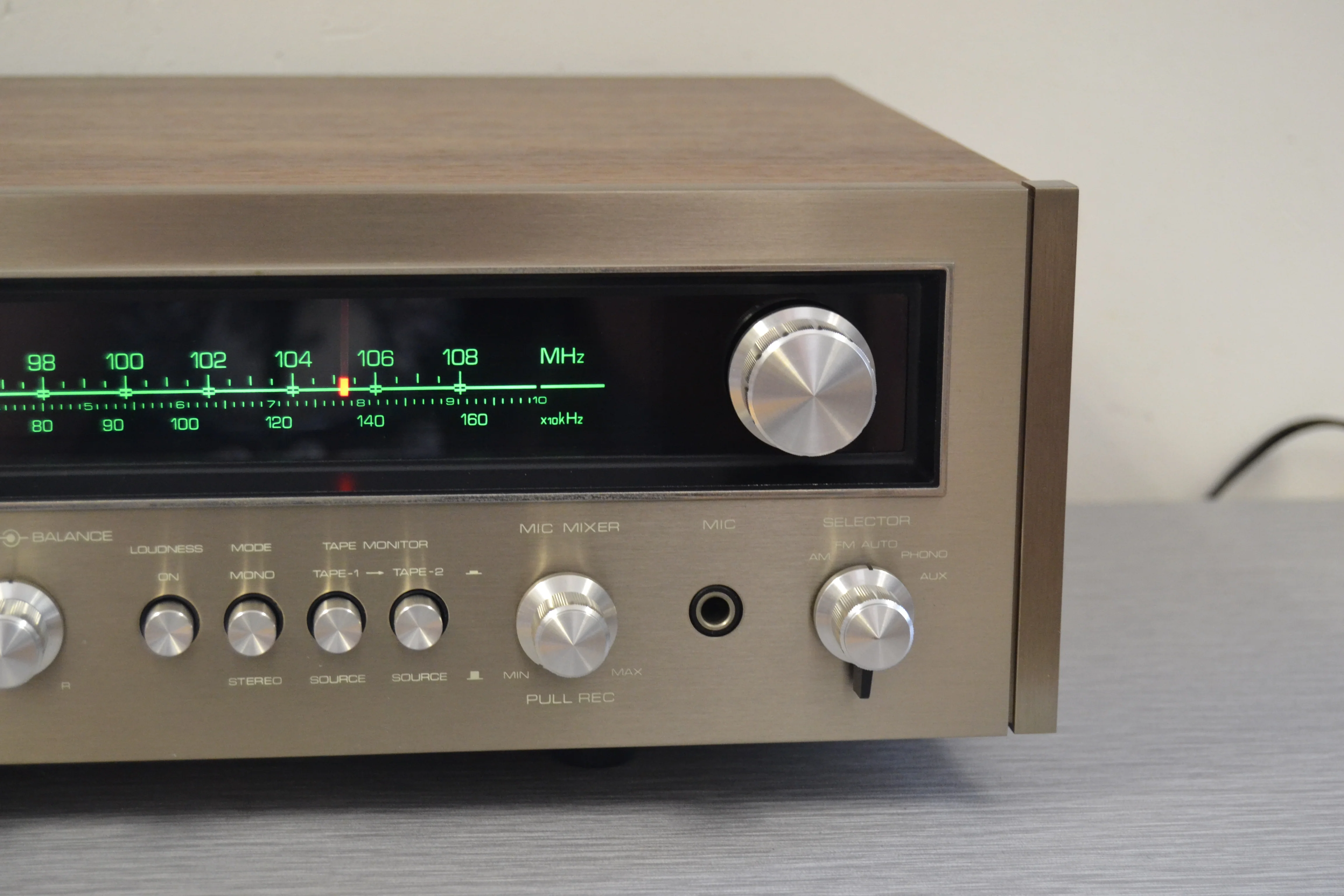

Onkyo TX-220 Stereo Receiver * 12W RMS * 1974 * LED
Onkyo TX-220
Solid State Stereo Receiver ( 1974-1976)
Specifications
Tuning range: FM, MW
Power output: 12 watts per channel into 8Ω (stereo)
Frequency response: 25Hz to 30kHz
Total harmonic distortion: 1%
Damping factor: 20
Input sensitivity: 5mV (mic), 2.5mV (MM), 200mV (DIN), 200mV (line)
Signal to noise ratio: 60dB (MM), 70dB (line)
Output: 200mV (line)
Speaker load impedance: 4Ω (minimum)
Semiconductors: 1 x FET, 33 x transistors, 33 x diodes, 3 x IC
Dimensions: 423 x 348 x 141mm
Weight: 9.8kg
Onkyo TX-220
Solid State Stereo Receiver ( 1974-1976)
Specifications
Tuning range: FM, MW
Power output: 12 watts per channel into 8Ω (stereo)
Frequency response: 25Hz to 30kHz
Total harmonic distortion: 1%
Damping factor: 20
Input sensitivity: 5mV (mic), 2.5mV (MM), 200mV (DIN), 200mV (line)
Signal to noise ratio: 60dB (MM), 70dB (line)
Output: 200mV (line)
Speaker load impedance: 4Ω (minimum)
Semiconductors: 1 x FET, 33 x transistors, 33 x diodes, 3 x IC
Dimensions: 423 x 348 x 141mm
Weight: 9.8kg
Original: $150.00
-65%$150.00
$52.50Description
Onkyo TX-220
Solid State Stereo Receiver ( 1974-1976)
Specifications
Tuning range: FM, MW
Power output: 12 watts per channel into 8Ω (stereo)
Frequency response: 25Hz to 30kHz
Total harmonic distortion: 1%
Damping factor: 20
Input sensitivity: 5mV (mic), 2.5mV (MM), 200mV (DIN), 200mV (line)
Signal to noise ratio: 60dB (MM), 70dB (line)
Output: 200mV (line)
Speaker load impedance: 4Ω (minimum)
Semiconductors: 1 x FET, 33 x transistors, 33 x diodes, 3 x IC
Dimensions: 423 x 348 x 141mm
Weight: 9.8kg
