McIntosh MAC4200 Stereo Receiver * 75W RMS * Serviced, Recapped and Rebuilt ! * 1986

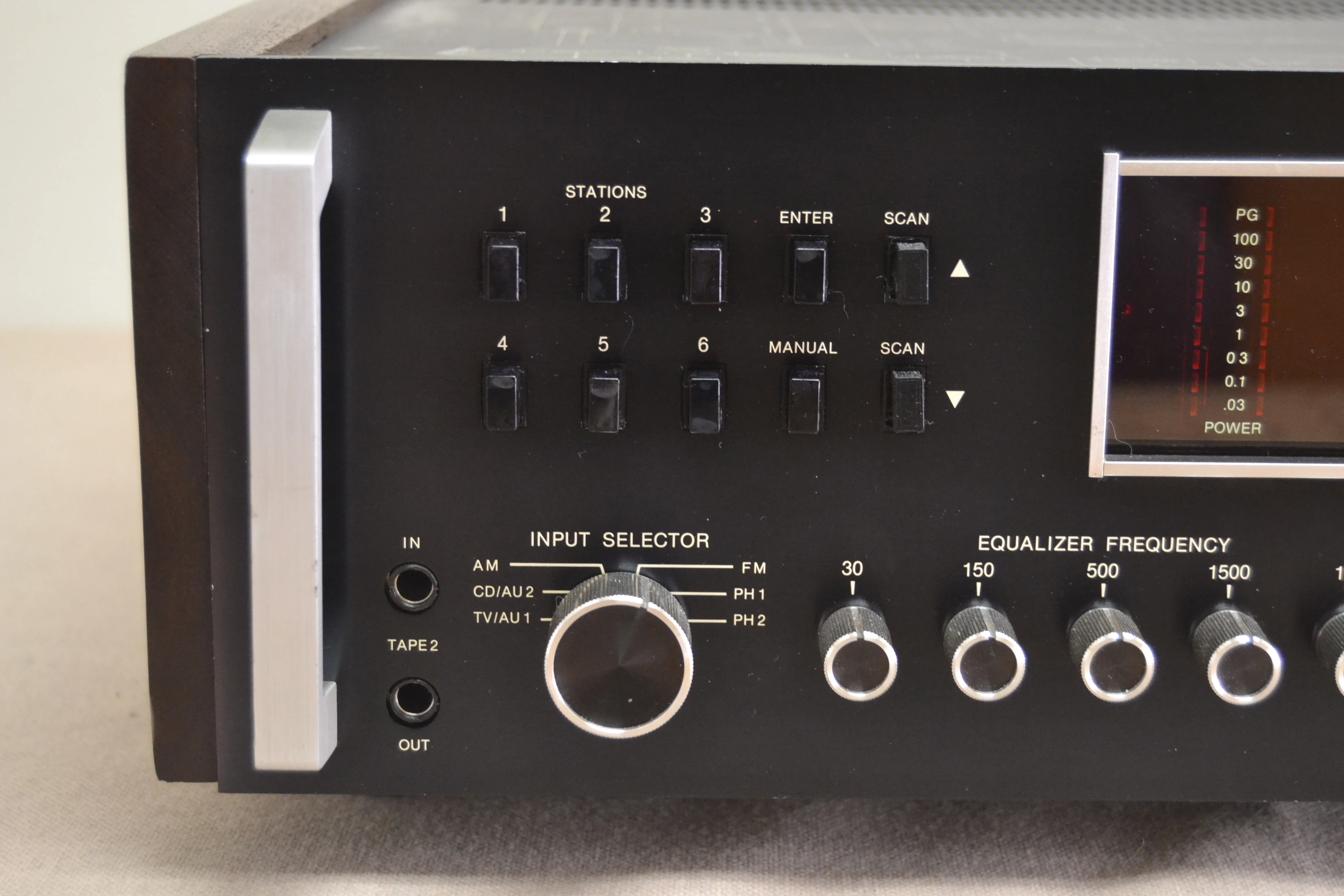

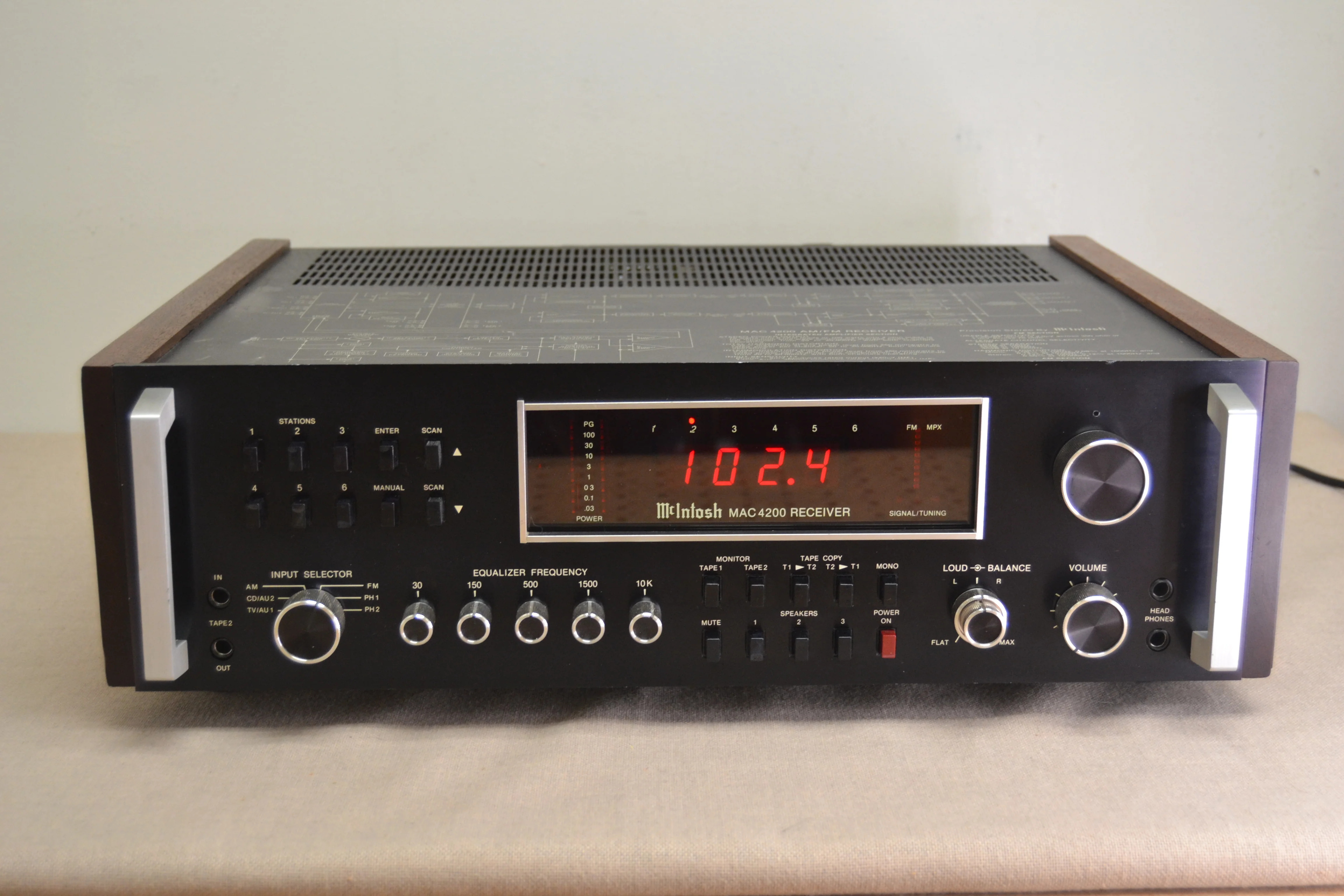

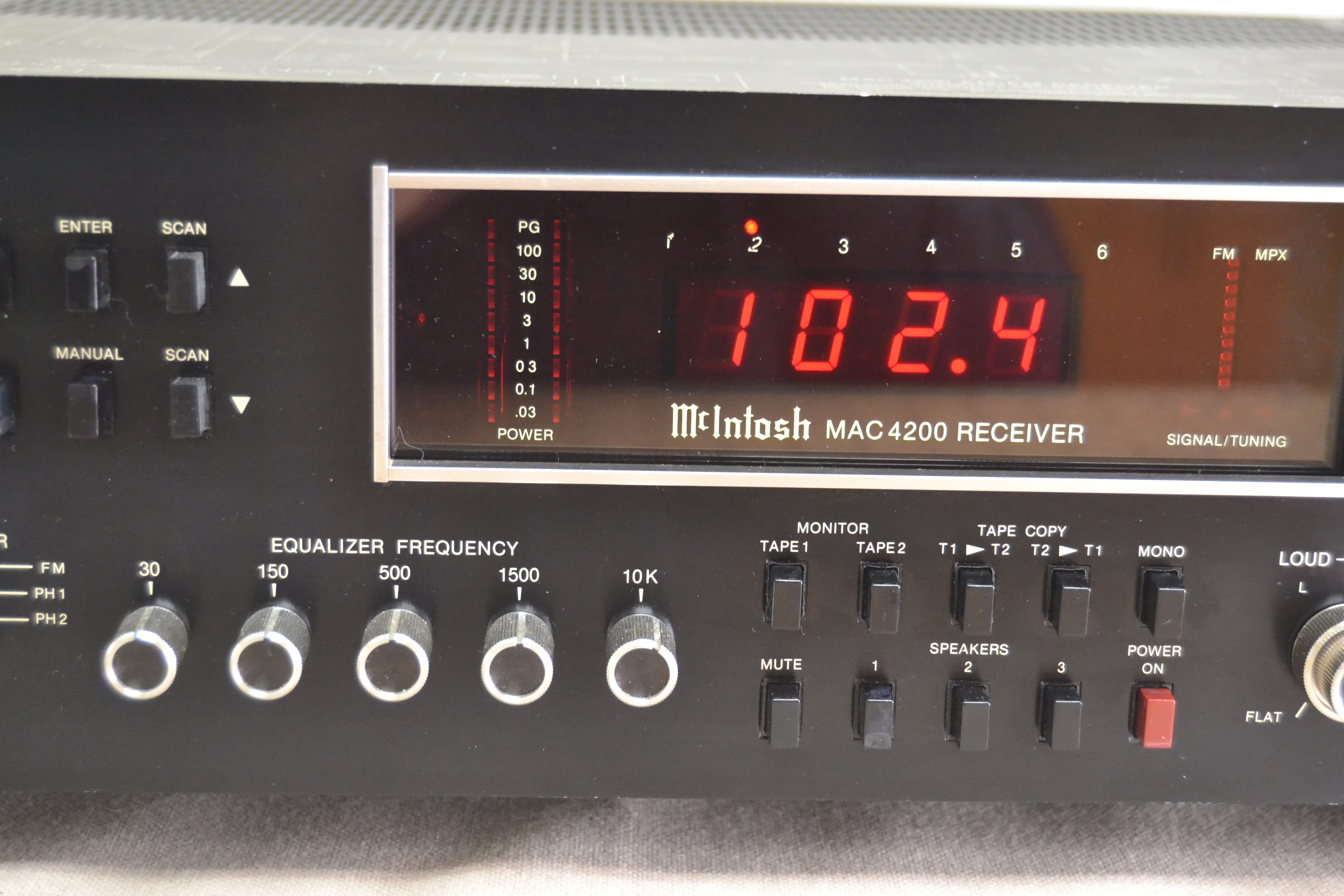

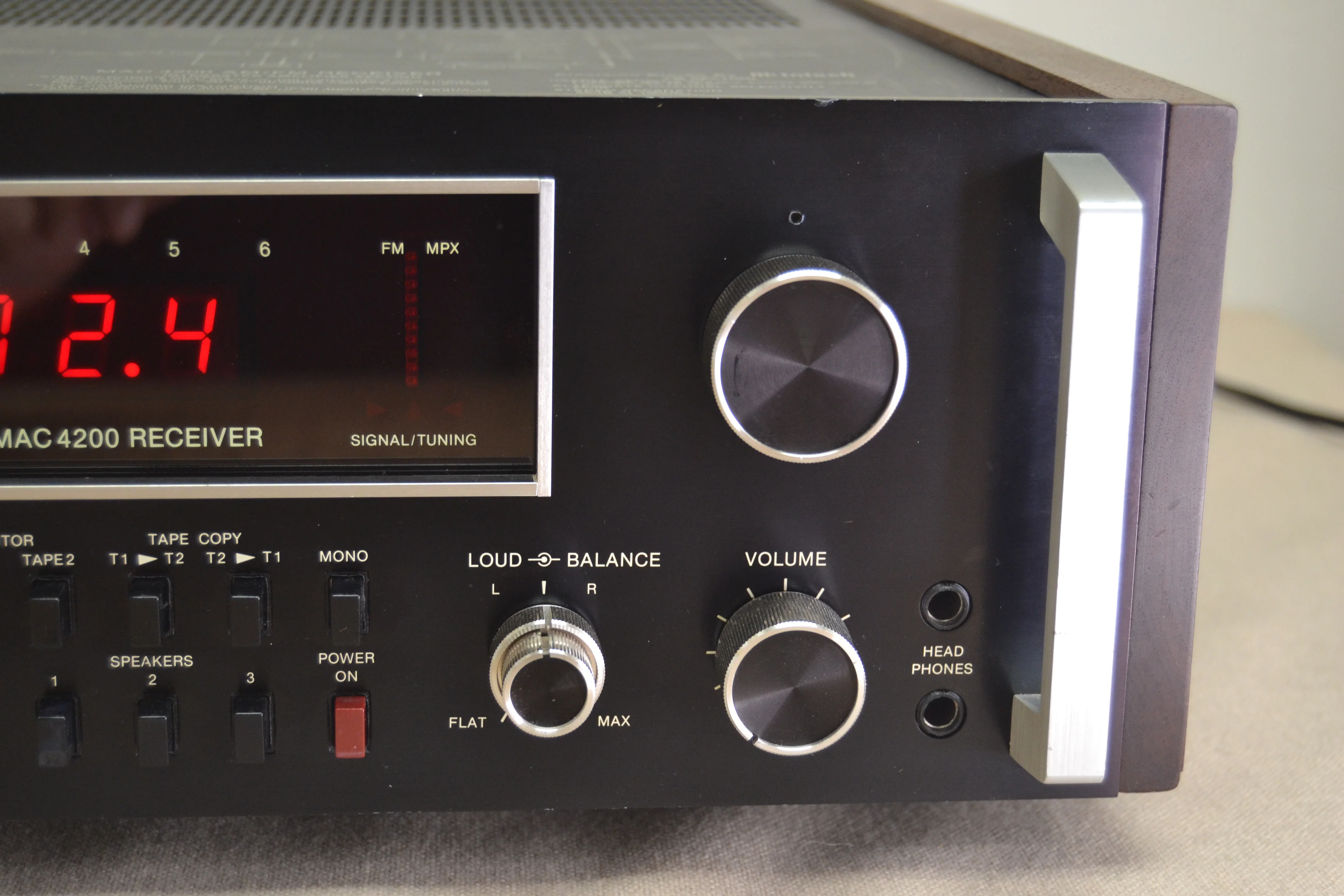

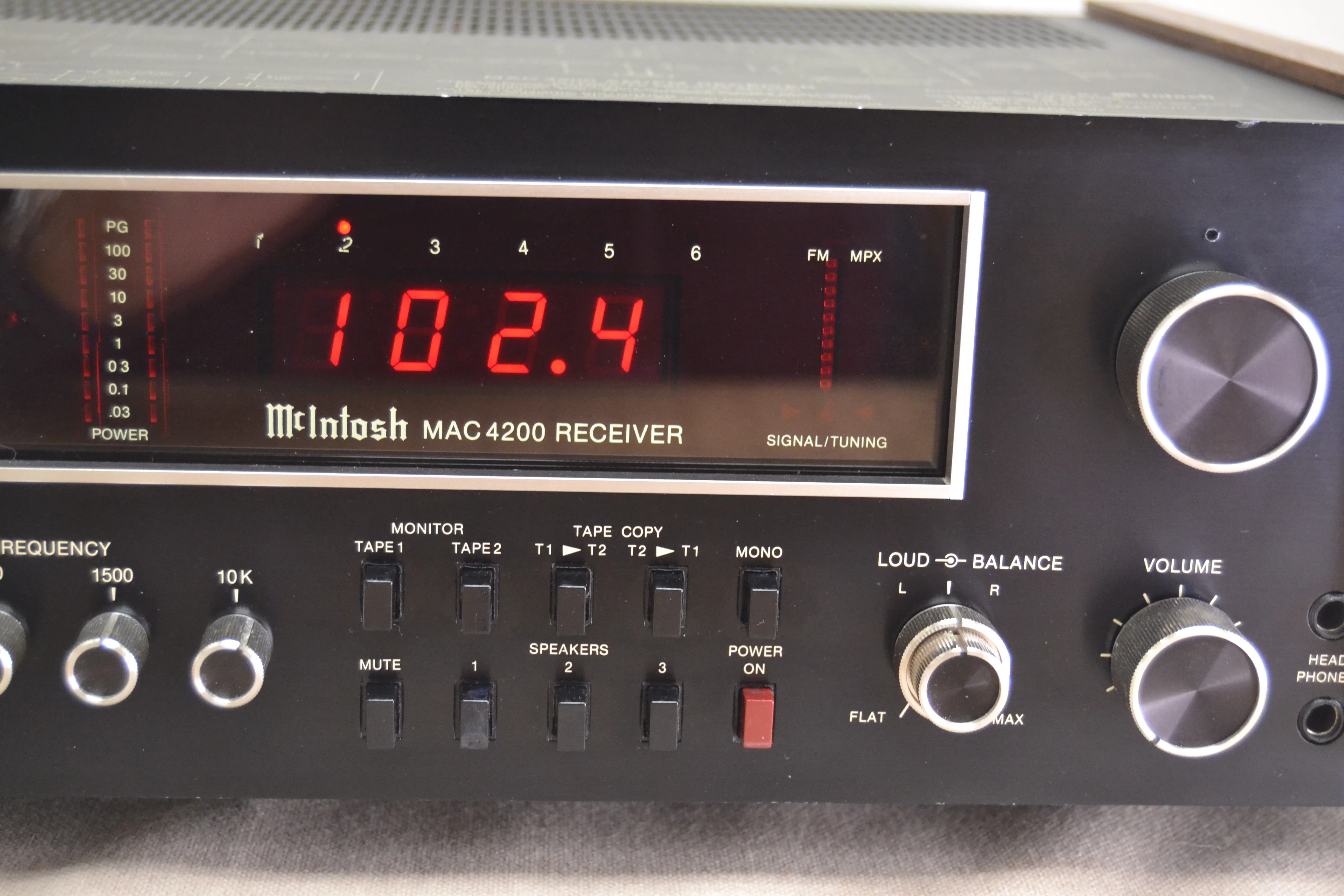

McIntosh MAC4200
AM/FM Stereo Receiver (1986)
Specifications
Tuning range: FM, MW
Power output: 75 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.02%
Damping factor: 40
Input sensitivity: 2.5mV (MM), 250mV (line)
Signal to noise ratio: 90dB (MM), 100dB (line)
Output: 250mV (line)
Speaker load impedance: 4Ω to 8Ω
Semiconductors: 37 x IC, 21 x FET, 67 x transistors, 142 x diodes
Dimensions: 471 x 133 x 356mm
Weight: 18.1kg
Year: 1986
McIntosh MAC4200
AM/FM Stereo Receiver (1986)
Specifications
Tuning range: FM, MW
Power output: 75 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.02%
Damping factor: 40
Input sensitivity: 2.5mV (MM), 250mV (line)
Signal to noise ratio: 90dB (MM), 100dB (line)
Output: 250mV (line)
Speaker load impedance: 4Ω to 8Ω
Semiconductors: 37 x IC, 21 x FET, 67 x transistors, 142 x diodes
Dimensions: 471 x 133 x 356mm
Weight: 18.1kg
Year: 1986
Description
McIntosh MAC4200
AM/FM Stereo Receiver (1986)
Specifications
Tuning range: FM, MW
Power output: 75 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.02%
Damping factor: 40
Input sensitivity: 2.5mV (MM), 250mV (line)
Signal to noise ratio: 90dB (MM), 100dB (line)
Output: 250mV (line)
Speaker load impedance: 4Ω to 8Ω
Semiconductors: 37 x IC, 21 x FET, 67 x transistors, 142 x diodes
Dimensions: 471 x 133 x 356mm
Weight: 18.1kg
Year: 1986
