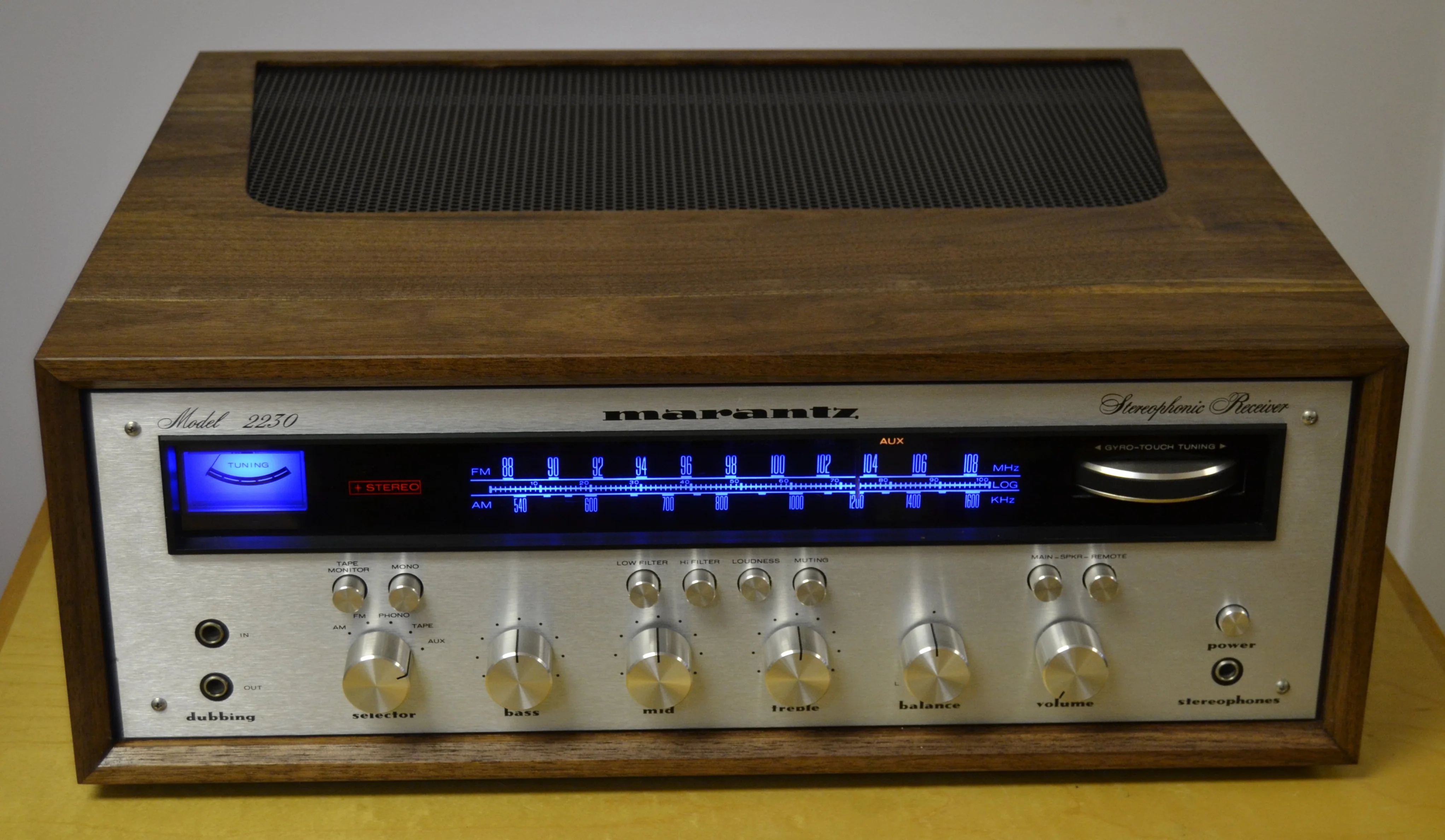

Marantz 2230 Stereo Receiver * Fully Refurbished * LEDs * NEW Hardwood Case * 30W RMS * 1973
Marantz 2230
Stereophonic Receiver (1972-74)
Specifications
-
Tuning range: FM, MW
Power output: 30 watts per channel into 8Ω (stereo)
Frequency response: 15Hz to 50kHz
Total harmonic distortion: 0.5%
Damping factor: 45
Input sensitivity: 1.8mV (MM), 180mV (line)
Signal to noise ratio: 83dB (line)
Channel separation: 35dB (line)
Speaker load impedance: 4Ω to 16Ω
Dimensions: 17-21/64 x 5-25/64 x 14 inches
Weight: 28.6lbs
Marantz 2230
Stereophonic Receiver (1972-74)
Specifications
-
Tuning range: FM, MW
Power output: 30 watts per channel into 8Ω (stereo)
Frequency response: 15Hz to 50kHz
Total harmonic distortion: 0.5%
Damping factor: 45
Input sensitivity: 1.8mV (MM), 180mV (line)
Signal to noise ratio: 83dB (line)
Channel separation: 35dB (line)
Speaker load impedance: 4Ω to 16Ω
Dimensions: 17-21/64 x 5-25/64 x 14 inches
Weight: 28.6lbs
Description
Marantz 2230
Stereophonic Receiver (1972-74)
Specifications
-
Tuning range: FM, MW
Power output: 30 watts per channel into 8Ω (stereo)
Frequency response: 15Hz to 50kHz
Total harmonic distortion: 0.5%
Damping factor: 45
Input sensitivity: 1.8mV (MM), 180mV (line)
Signal to noise ratio: 83dB (line)
Channel separation: 35dB (line)
Speaker load impedance: 4Ω to 16Ω
Dimensions: 17-21/64 x 5-25/64 x 14 inches
Weight: 28.6lbs
