Akai 1730D-SS Reel to Reel Deck * Fully Serviced * New Belt
Akai 1730D-SS
Discrete 4-Channel Tape Deck (1973-76)
Description
Nothing is lacking in the performance of the 1730D-SS. It is versatile and completely compatible with conventional 2 channel.

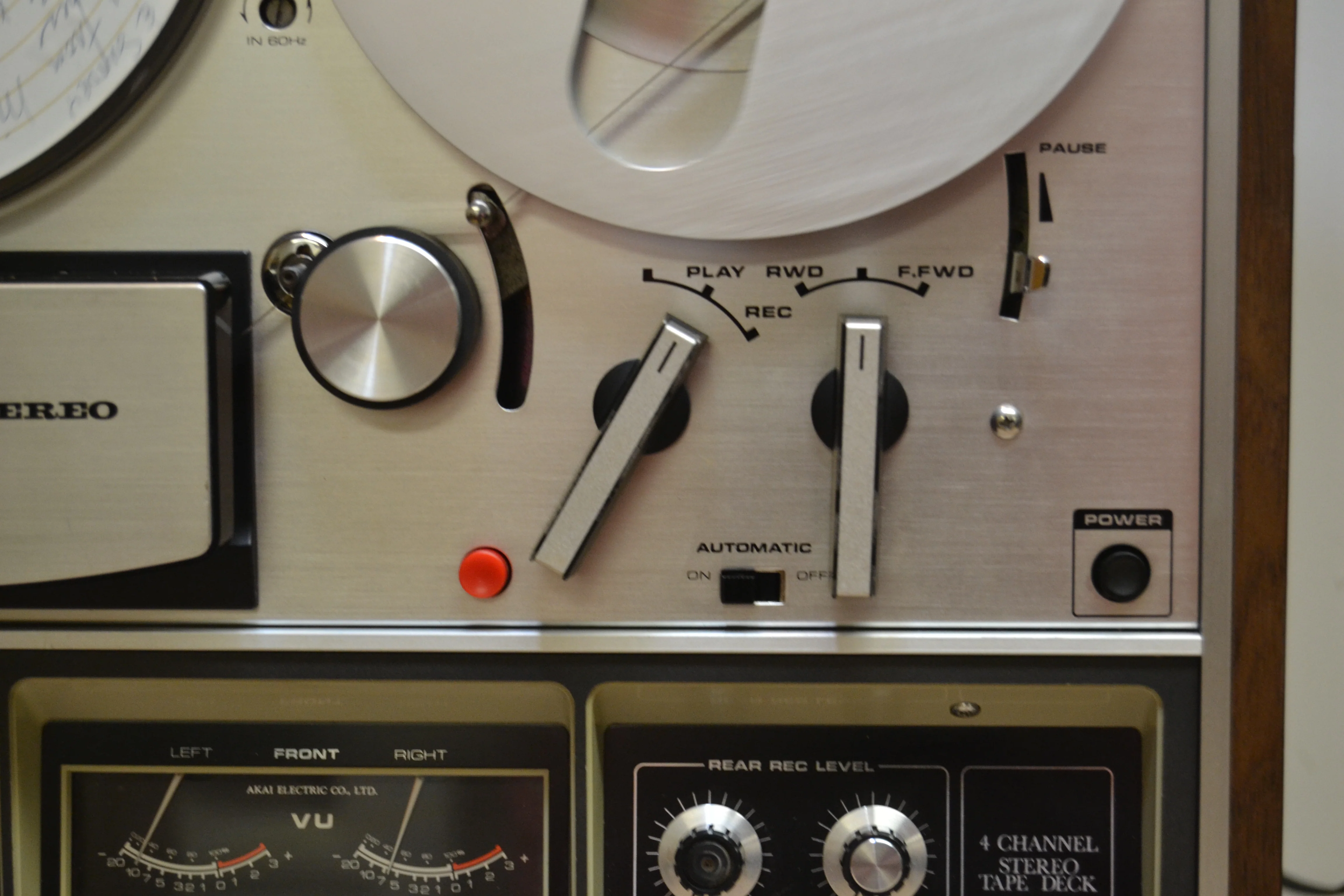

Engineered with 4 heads, hysteresis synchronous 2-speed motor, automatic shut-off, pause control and slanted control panel for operating ease.
Specifications
Track system: 4-track, 4-channel, stereo/multi channel system
Heads: 1 x record, 1 x playback, 2 x erase
Motor: 2 speed hysteresis synchronous
Reel size: 5 or 7 inch reel
Tape speeds: 3 3⁄4 7 1⁄2 ips
Wow and flutter: 0.15% (7 1⁄2 ips)
Frequency response: 30Hz to 22kHz (7 1⁄2 ips)
Signal to Noise Ratio: 48dB
Total harmonic distortion: 2%
Crosstalk: 40dB
Input: 40mV (line), 20mV (DIN), 0.4mV (mic)
Output: 1.228V (line)
Output power: 5 watts
Dimensions: 450 x 420 x 240mm
Weight: 17kg
